TECH PUBLICDatasheet (PDF)

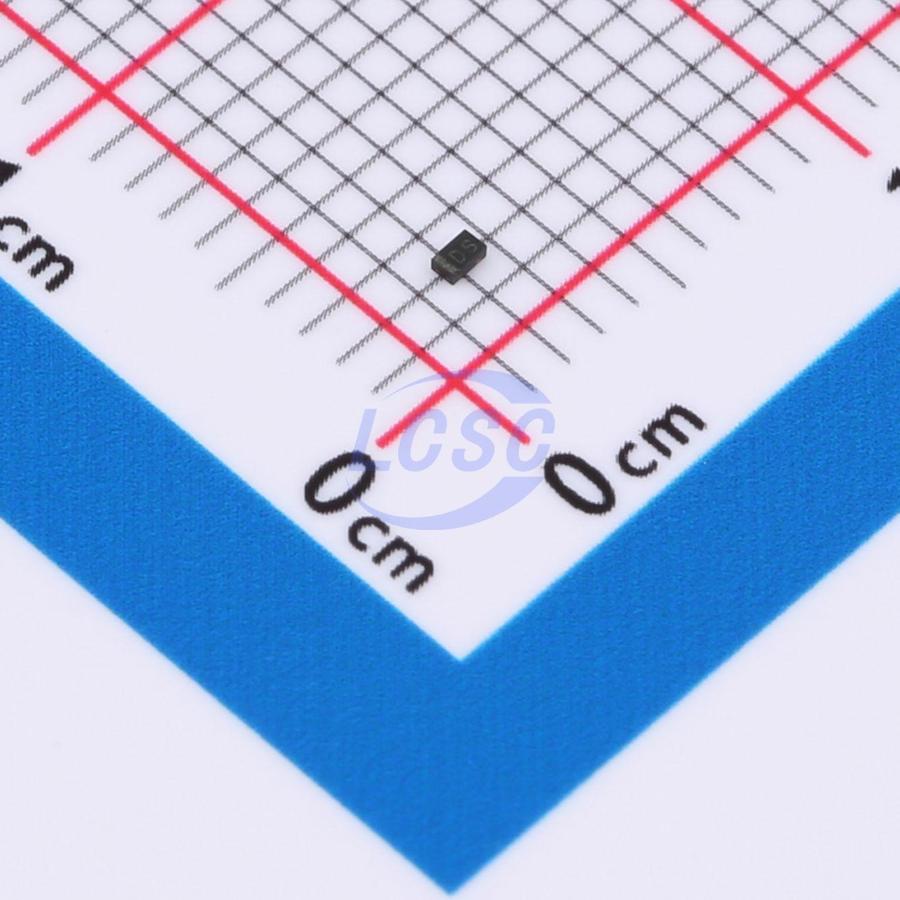

PESD36VS1UL
60VC Clamp 3A@8/20us Ipp DFN1006-2(0402)
DFN1006-2(0402)RoHSActive
36VWM 60VC DFN1006-2(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD36VS1UL
- Store part #
- C19829481
- Package / case
- DFN1006-2(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,780 in stock
#C19829481
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.47 | ₹89.40 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹3.03 | ₹1,818.00 |
| 2,000+ | ₹2.67 | ₹5,340.00 |
| 10,000+ | ₹2.38 | ₹23,800.00 |
| 20,000+ | ₹2.24 | ₹44,800.00 |
20 × ₹4.47
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD36VS1UL
₹89.40 for 20 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 38V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.009 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultralow capacitance: 22pF max
- Ultralow leakage: nA level
- Low operating voltage: 36V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000 - 4 - 5 (Lightning) 3A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
