PESD3V3L1BAF-HXY
16VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 3.3VWM 16VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PESD3V3L1BAF-HXY
- Store part #
- C42416650
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C42416650
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.12 | ₹91.20 |
| 100+ | ₹7.34 | ₹734.00 |
| 300+ | ₹6.46 | ₹1,938.00 |
| 3,000+ | ₹5.79 | ₹17,370.00 |
| 6,000+ | ₹5.25 | ₹31,500.00 |
| 9,000+ | ₹4.99 | ₹44,910.00 |
10 × ₹9.12
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD3V3L1BAF-HXY
₹91.20 for 10 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Voltage - Breakdown
- 4V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 40uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview

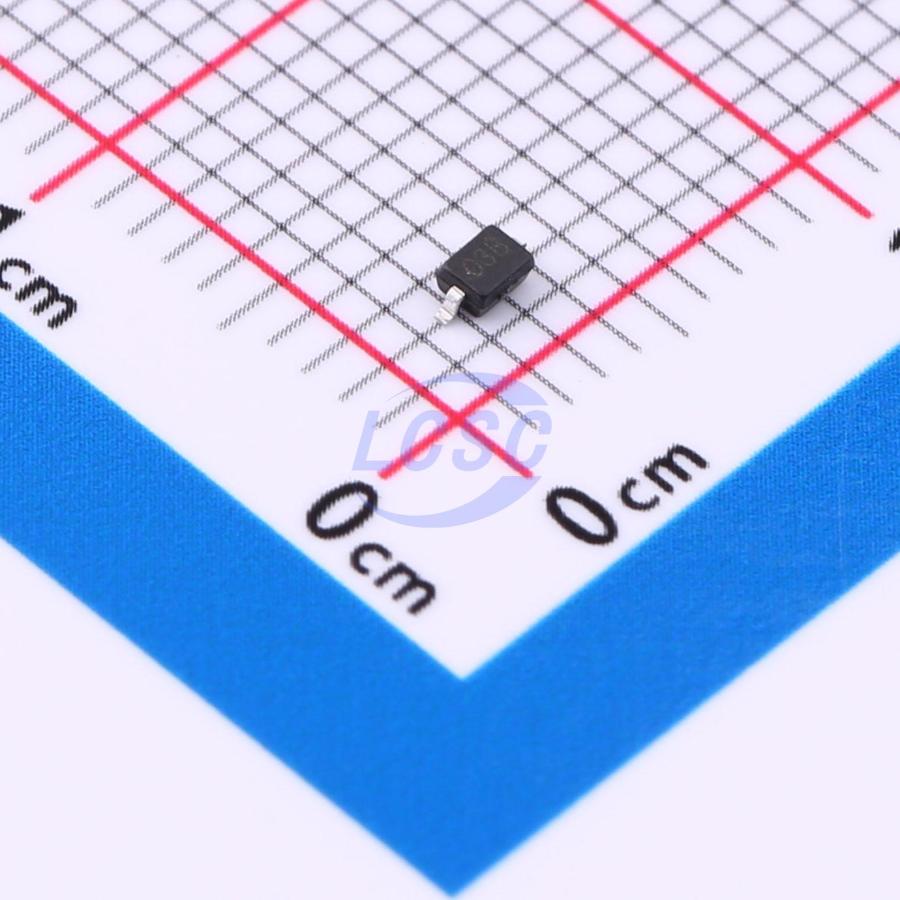

A bidirectional electrostatic discharge protection diode in an ultra-compact SOD-323 flat lead plastic package, designed to protect a single signal line against ESD and other transient events.
Applications
- Mobile phones & accessories
- Microprocessor-based devices
- Personal digital assistants
- Laptops, desktops & servers
Key features
- Bidirectional ESD protection for single line
- Reverse standoff voltage: 3.3 V max
- Low leakage current: nanoampere level
- Typical response time < 1 ns
- Low clamping voltage: VC < 16 V at IPP = 20 A
- ESD protection: 30 kV (air discharge) / 30 kV (contact discharge) per IEC61000-4-2
- RoHS compliant
