TECH PUBLICDatasheet (PDF)

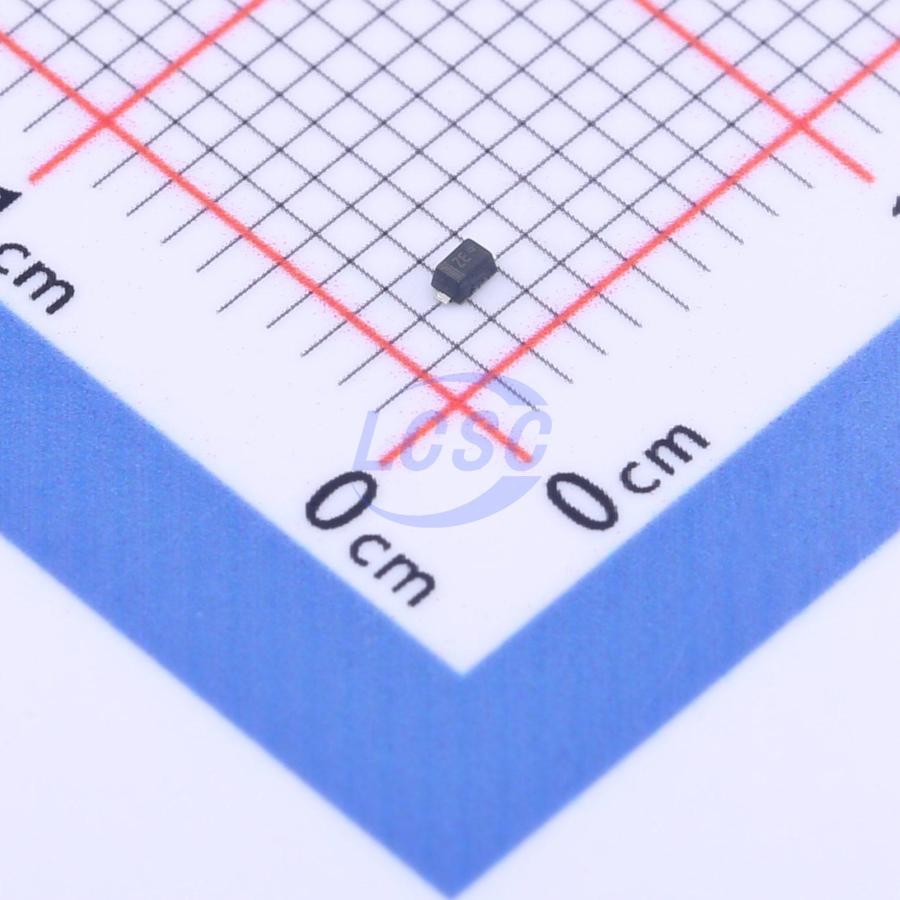

PESD3V3L1UB
nan
SOD-523RoHSActive
3.3VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD3V3L1UB
- Store part #
- C2928732
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,300 in stock
#C2928732
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.82 | ₹141.00 |
| 500+ | ₹2.24 | ₹1,120.00 |
| 3,000+ | ₹1.72 | ₹5,160.00 |
| 6,000+ | ₹1.53 | ₹9,180.00 |
| 24,000+ | ₹1.36 | ₹32,640.00 |
| 51,000+ | ₹1.27 | ₹64,770.00 |
50 × ₹2.82
₹141.00
excl. GST
₹166.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD3V3L1UB
₹141.00 for 50 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 5V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.024 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, CD Displays, USB2.0
Key features
- 150Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines td
- IEC61000 - 4 - 2(ESD) ± 30kV (air), ± 30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
