TECH PUBLICDatasheet (PDF)

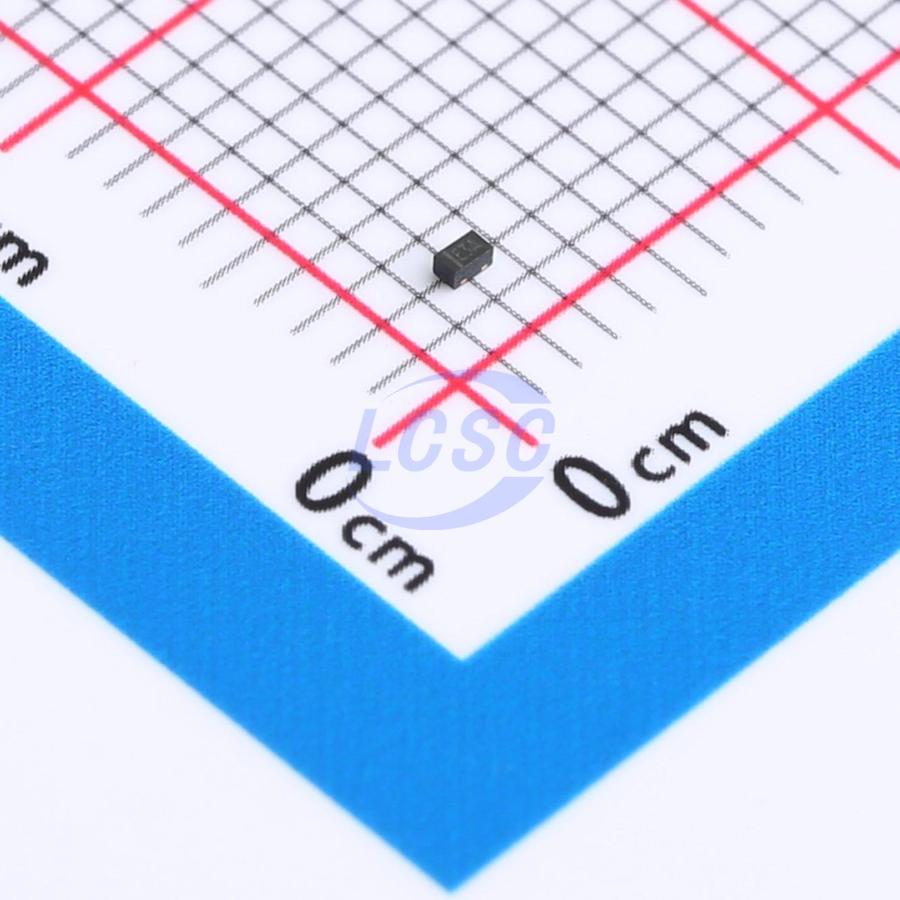

PESD3V3L1UL
15VC Clamp 4A@8/20us Ipp TVS DIODE DFN1006-2
DFN1006-2RoHSActive
TVS DIODE 3.3VWM 15VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD3V3L1UL
- Store part #
- C19829540
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C19829540
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.41 | ₹68.20 |
| 200+ | ₹2.65 | ₹530.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 2,000+ | ₹1.96 | ₹3,920.00 |
| 10,000+ | ₹1.73 | ₹17,300.00 |
| 20,000+ | ₹1.61 | ₹32,200.00 |
20 × ₹3.41
₹68.20
excl. GST
₹80.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD3V3L1UL
₹68.20 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 4.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.01 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 0.45pF typical
- Ultralow leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±18kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | D1213A-01LP#C19829538TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 11,080 | ₹3.63 · 11,080 in stock | View |
 | UCLAMP3301P#C19829539TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 4,15,080 | ₹2.71 · 4,15,080 in stock | View |
 | TPD1E04U04DPYR#C19829541TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 10,600 | ₹3.88 · 10,600 in stock | View |
 | SP3205-01ETG#C19829542TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 10,560 | ₹3.80 · 10,560 in stock | View |
 | PESD3V3U1UL#C19829543TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 24,040 | ₹3.92 · 24,040 in stock | View |
