NexperiaDatasheet (PDF)

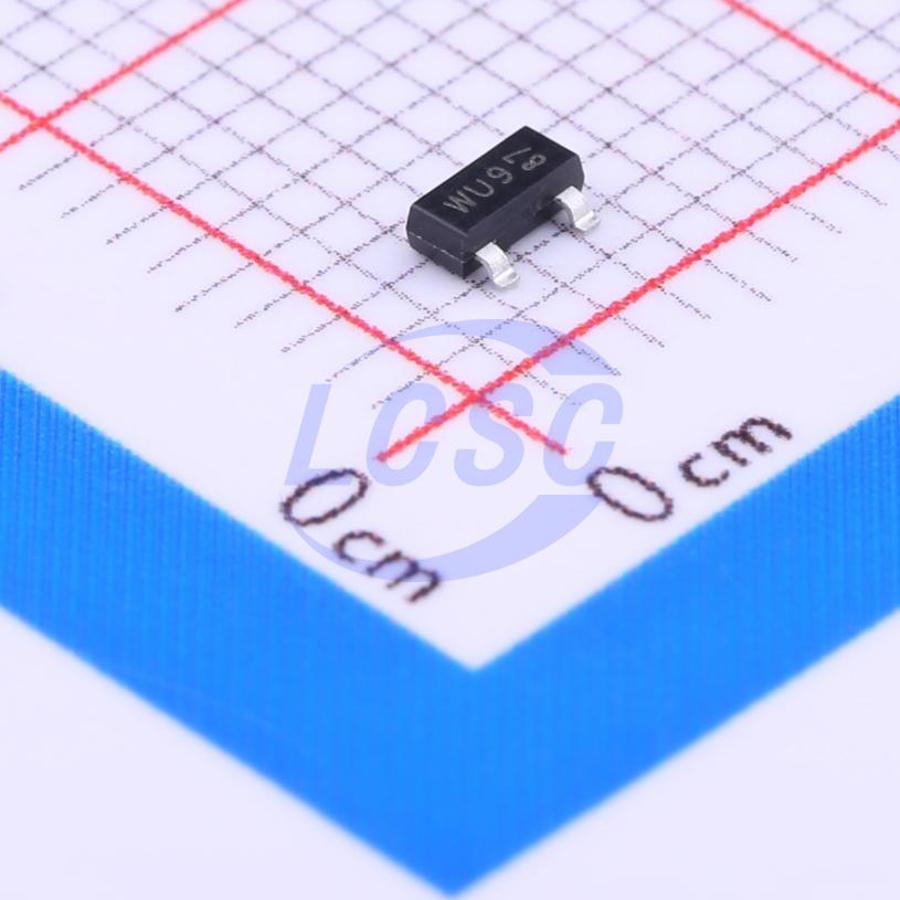

PESD3V3S2UT,215
20VC Clamp 18A Ipp ESD DIODE SOT-23
PopularSOT-23ROHS3 CompliantActive
ESD DIODE 3.3VWM 20VC SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD3V3S2UT,215
- Store part #
- C84276
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56,090 in stock
#C84276
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.91 | ₹69.10 |
| 100+ | ₹5.44 | ₹544.00 |
| 300+ | ₹4.70 | ₹1,410.00 |
| 3,000+ | ₹4.15 | ₹12,450.00 |
| 6,000+ | ₹3.72 | ₹22,320.00 |
| 9,000+ | ₹3.49 | ₹31,410.00 |
10 × ₹6.91
₹69.10
excl. GST
₹81.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD3V3S2UT,215
₹69.10 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 18A
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Uni-directional double ESD protection diode in a SOT23 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage.
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- High speed data lines
- Parallel ports
Key features
- Uni-directional ESD protection of up to two lines
- Max. peak pulse power: Pₚₚ = 330 W at tₚ = 8/20 μs
- Low clamping voltage: V₍₍CL₎₎R = 20 V at Iₚₚ = 18 A
- Ultra-low reverse leakage current: |RM| < 700 nA
- ESD protection > 30 kV
- IEC 61000-4-2; level 4 (ESD)
- IEC 61000-4-5 (surge); Iₚₚ = 18 A at tₚ = 8/20 μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD3V3S2UT-HXY#C19627016HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 20 | ₹4.09 · 20 in stock | View |
 | H3V3HT2U#C20617924R+O · SOT-23 | R+O | SOT-23 | 13,160 | ₹4.55 · 13,160 in stock | View |
 | PESD3V3S2UT#C41399462GOODWORK · SOT-23 | GOODWORK | SOT-23 | 3,100 | ₹3.27 · 3,100 in stock | View |
 | PESD3V3S2UT-FS#C49328581FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 2,540 | ₹5.29 · 2,540 in stock | View |
 | PESD3V3L2BT-FS#C5380677FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 21,740 | ₹4.62 · 21,740 in stock | View |
