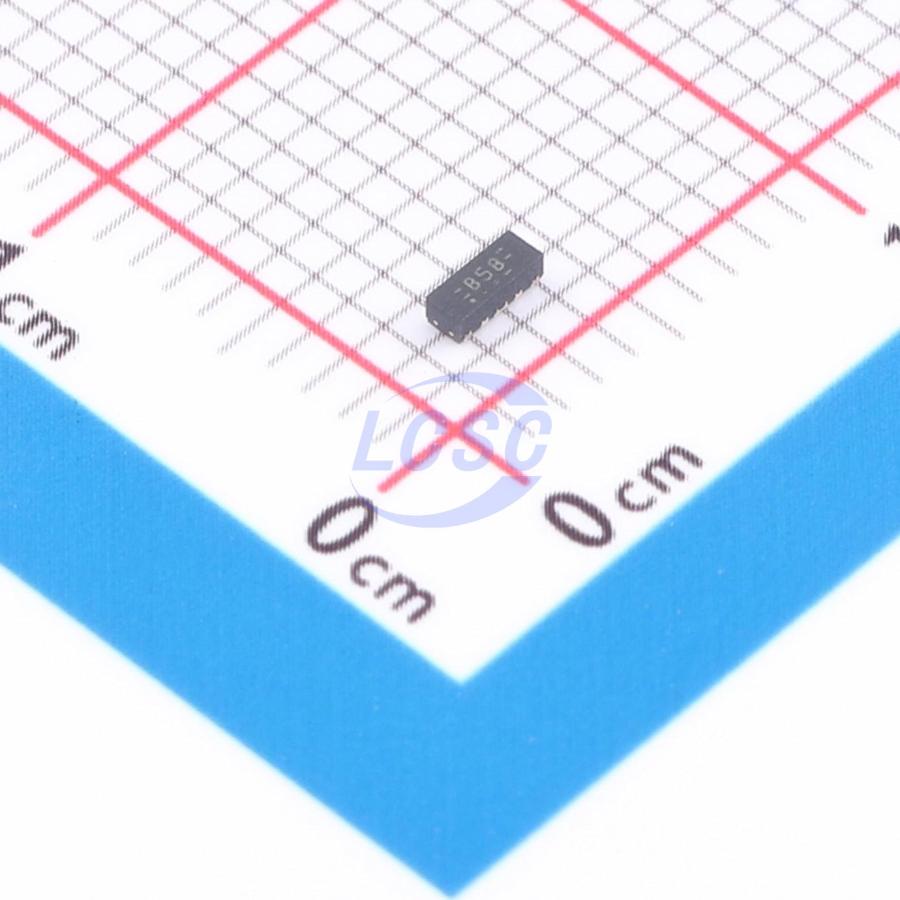

PESD4USB5BTTS-QX
5.5V 7A@8/20us 9V 5V DFN2510D-10 TVS Diodes RoHS
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD4USB5BTTS-QX
- Store part #
- C20235790
- Package / case
- DFN2510D-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
285 in stock
#C20235790
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.56 | ₹52.56 |
| 10+ | ₹51.27 | ₹512.70 |
| 30+ | ₹50.39 | ₹1,511.70 |
| 100+ | ₹49.52 | ₹4,952.00 |
1 × ₹52.56
₹52.56
excl. GST
₹62.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PESD4USB5BTTS-QX
₹52.56 for 1 + GST
Specifications
- Clamping Voltage
- 5.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Voltage - Breakdown
- 9V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.252 g
Overview
This bidirectional ESD protection device is designed to protect high-speed interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI, DisplayPort, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signaling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) against ElectroStatic Discharge (ESD). The device is encapsulated in a leadless small DFN2510D-10 (SOT1165D) plastic package with side-wettable flanks (SWF) which allow automatic optical inspection (AOI). The device provides ESD protection up to 15 kV exceeding IEC61000-4-2 level 4 and fulfilling ISO10605.
Applications
- Infotainment applications: USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT
- Automotive A/V monitors, display and cameras
- SerDes: GMSL, FPD-Link, LVDS
Key features
- System-level ESD protection for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps, HDMI, DisplayPort, eSATA and LVDS
- Line capacitance of only 0.3 pF for each channel
- Outstanding system protection: extremely deep snap-back combined with dynamic resistance of 0.5 Ω
- ESD protection level up to ±15 kV (IEC 61000-4-2, level 4; ISO10605)
- Matched 0.5 mm trace spacing and side-wettable flanks (SWF) for AOI
- Design-friendly ‘pass-through’ signal routing
- Qualified according to AEC-Q101 and recommended for use in automotive applications
