Nexperia

PESD4V0Z2BCDFZ

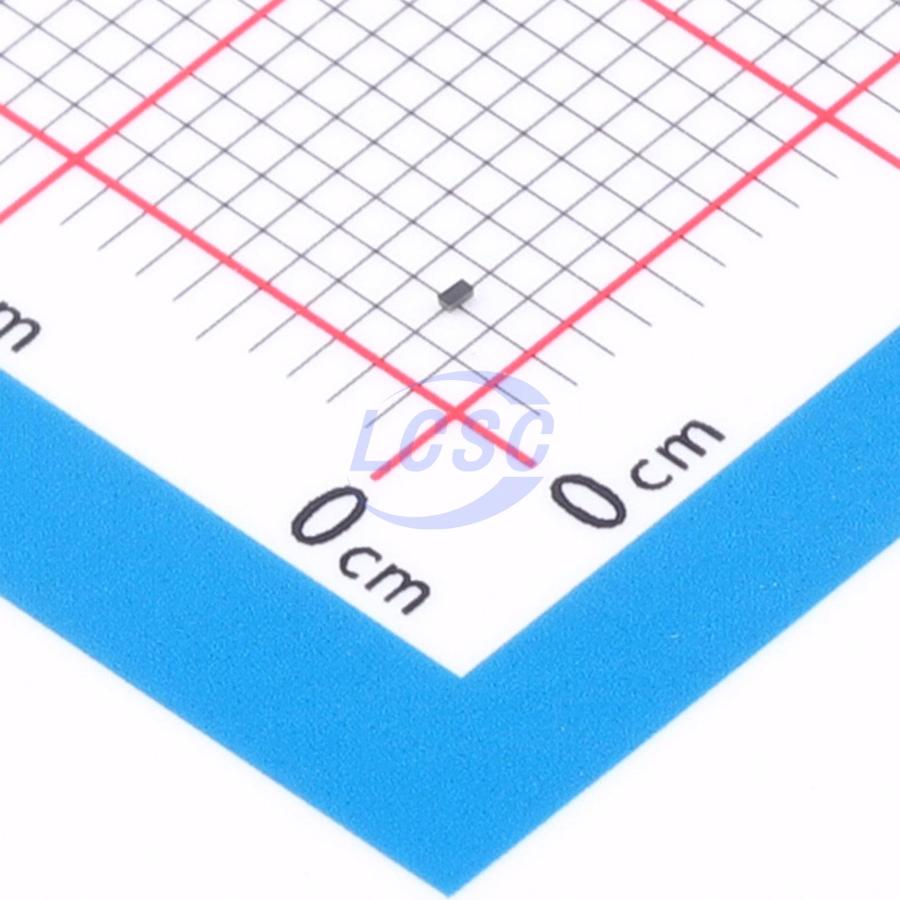

5.8VC Clamp 11A@8/20us Ipp TVS DIODE DFN0603-3

DFN0603-3ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: PESD4V0Z2BCDFZ
Store part #: C3705032
Package / case: DFN0603-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

99 in stock

#C3705032

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹27.58	₹27.58
10+	₹26.94	₹269.40
30+	₹26.50	₹795.00
100+	₹26.06	₹2,606.00

Quantity (min 1)

1 × ₹27.58

₹27.58

excl. GST

₹32.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15,000 per reel

PESD4V0Z2BCDFZ

₹27.58 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 5.8V
Peak Pulse Current (Ipp): 11A@8/20us
Voltage - Breakdown: 7.4V
type: TVS
Reverse Stand-Off Voltage (Vrwm): 4V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 15,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

Symmetrical bidirectional ElectroStatic Discharge (ESD) protection diode array, part of the TrEOS protection family. This device is housed in a DFN0603-3 (SOT8013) leadless ultra small SurfaceMounted Device (SMD) package designed to protect two signal lines from the damage caused by ESD and other transients.

Applications

USB3.2 and HDMI2.1 data lines
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals

Key features

Bidirectional ESD protection of two lines
Very low diode capacitance Cd = 0.31 pF
Extremely low clamping to protect sensitive I/Os
Extremely low-inductance protection path to ground
Extremely symmetrical layout
ESD protection up to ±25 kV according to IEC 61000-4-2; surge robustness 11.0 A 8/20 μs
Ultra small SMD package
Placed on one differential line pair, almost no extra PCB space demand for protection
