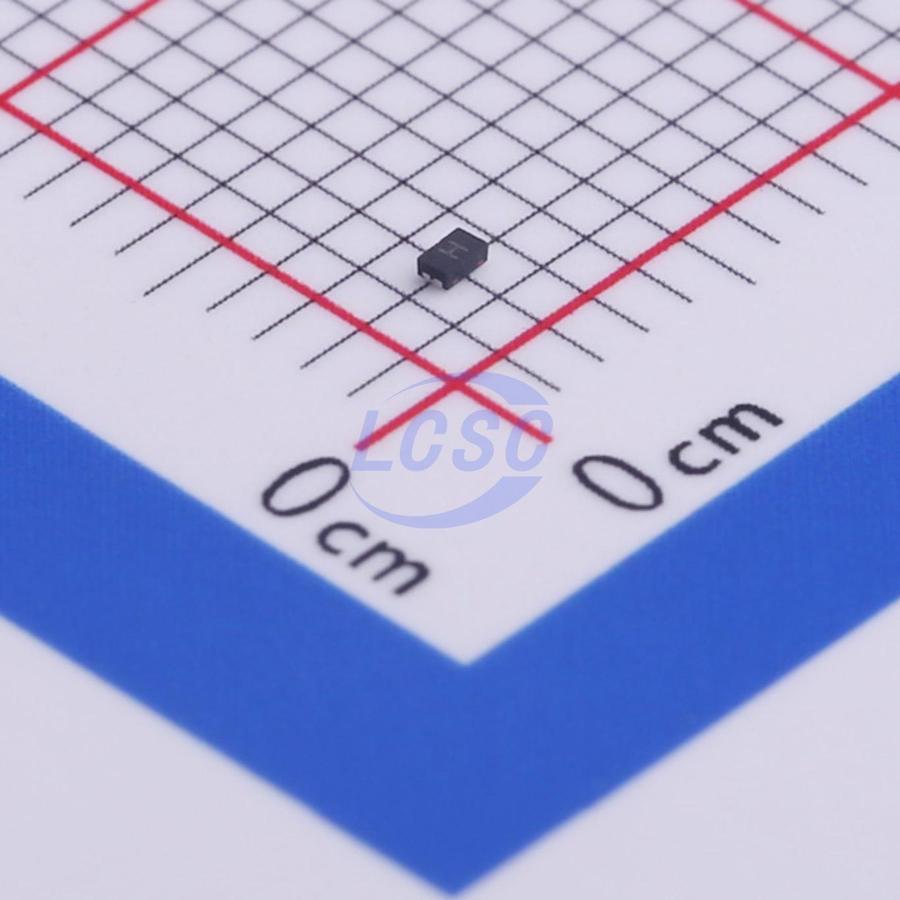

PESD5V0F1BLD,315
15VC Clamp ESD DIODE X1-DFN1006-2
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0F1BLD,315
- Store part #
- C478204
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C478204
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.52 | ₹227.60 |
| 50+ | ₹35.56 | ₹1,778.00 |
| 150+ | ₹31.29 | ₹4,693.50 |
| 500+ | ₹25.96 | ₹12,980.00 |
| 2,500+ | ₹23.59 | ₹58,975.00 |
| 5,000+ | ₹22.16 | ₹1,10,800.00 |
5 × ₹45.52
₹227.60
excl. GST
₹268.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD5V0F1BLD,315
₹227.60 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection and antenna protection applications.
Applications
- 10/100/1000 Mbit/s Ethernet
- FireWire High-speed data lines
- SIM card protection
- Cellular handsets and accessories
- Portable electronics
- Communication systems
- Computers and peripherals
- Audio and video equipment
- Antenna protection
Key features
- Bidirectional ESD protection of one line
- Femtofarad capacitance: Cd = 400 fF
- Low ESD clamping voltage: 30 V at 30 ns and ±8 kV
- Very low leakage current: |IRM| = 1 nA
- ESD protection up to 10 kV
- IEC 61000-4-2; level 4 (ESD)
- Package height typ. 0.37 mm
