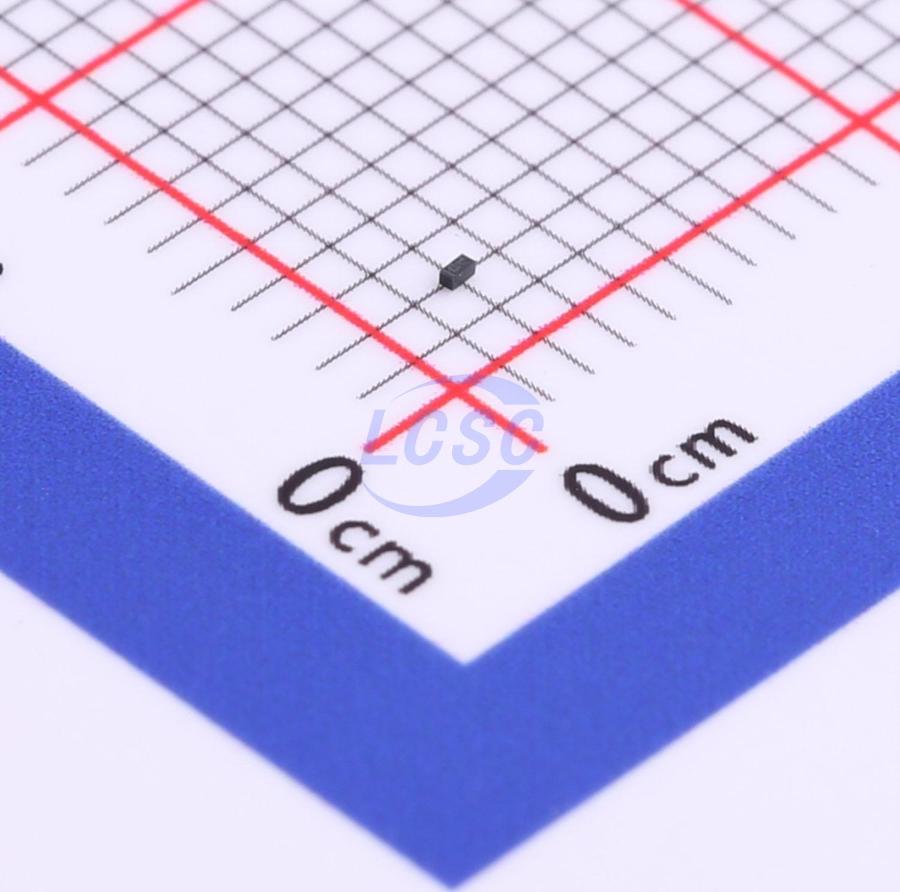

PESD5V0F1BSF-TP
16VC Clamp 4A@8/20us Ipp ESD DIODE DFN0603-2
DFN0603-2RoHSActive
ESD DIODE 5VWM 16VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0F1BSF-TP
- Store part #
- C2827719
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C2827719
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.38 | ₹107.60 |
| 200+ | ₹4.33 | ₹866.00 |
| 600+ | ₹3.73 | ₹2,238.00 |
| 2,000+ | ₹3.39 | ₹6,780.00 |
| 15,000+ | ₹2.61 | ₹39,150.00 |
| 30,000+ | ₹2.43 | ₹72,900.00 |
20 × ₹5.38
₹107.60
excl. GST
₹126.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
PESD5V0F1BSF-TP
₹107.60 for 20 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.008 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 0.6x0.3x0.3mm
- Ultra low capacitance: 0.28 pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±23 kV Contact discharge: ±15 kV
- IEC61000-4-5 (Lightning) 4A (8/20 μs)
- These are Pb-Free Devices
- Response Time is Typically <1 ns
