TECH PUBLICDatasheet (PDF)

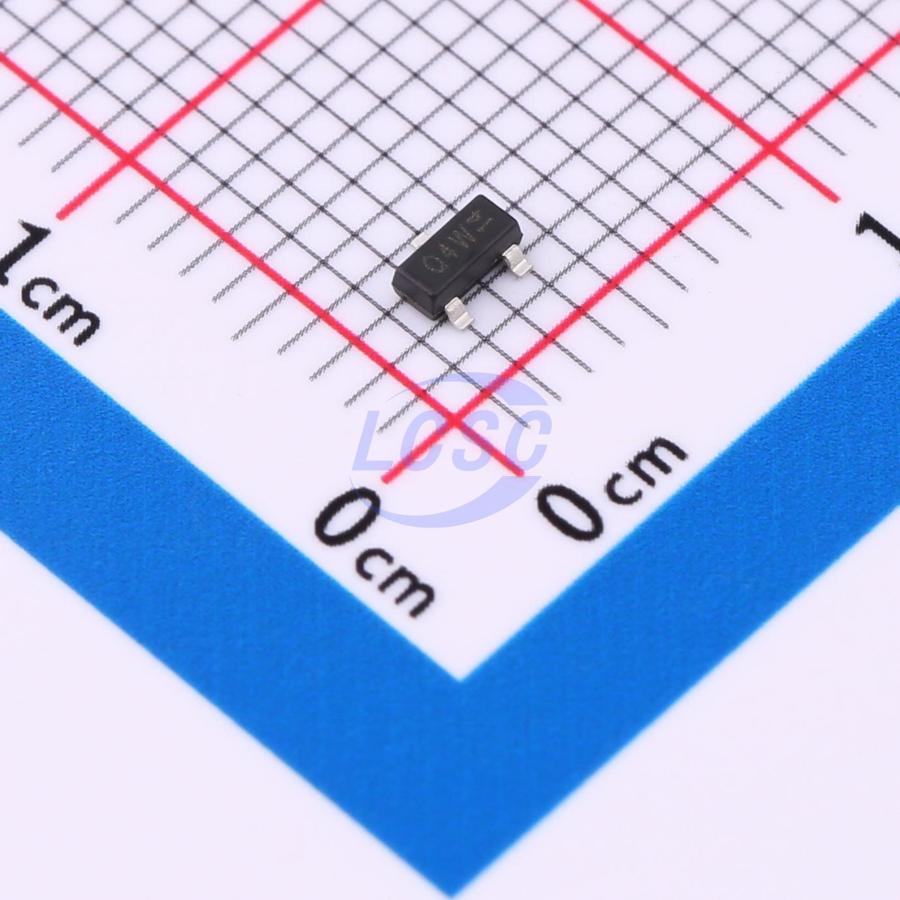

PESD5V0F2UTR
23VC Clamp 4A@8/20us Ipp SOT-23-3
SOT-23-3RoHSActive
5VWM 23VC SOT-23-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0F2UTR
- Store part #
- C22358701
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C22358701
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.14 | ₹1,221.00 |
| 500+ | ₹7.24 | ₹3,620.00 |
| 3,000+ | ₹6.51 | ₹19,530.00 |
| 6,000+ | ₹6.15 | ₹36,900.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0F2UTR
₹58.70 for 5 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- USB 2.0 and USB 3.0
- SATA and eSATA
- DVI
- Set Top Box
- Portable Electronics
Key features
- Ultra low capacitance: 0.35pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
