TECH PUBLICDatasheet (PDF)

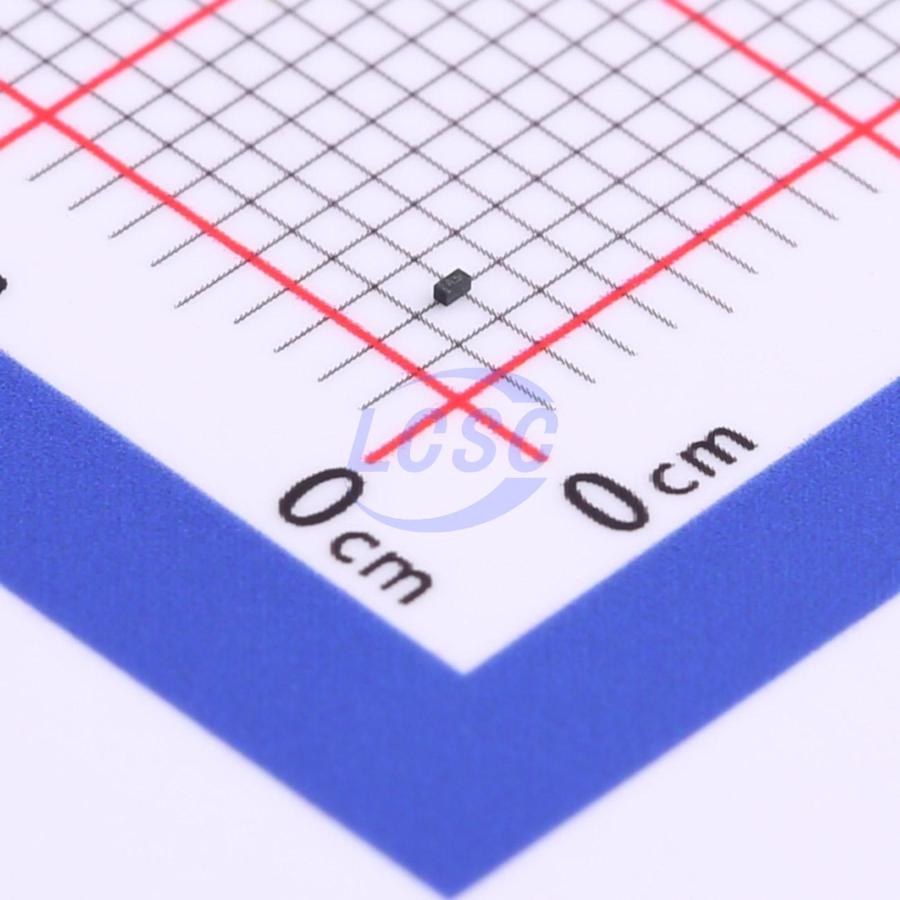

PESD5V0L1BSF-TP
nan
DFN0603-2RoHSActive
5VWM 10VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0L1BSF-TP
- Store part #
- C2827718
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C2827718
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.91 | ₹38.20 |
| 200+ | ₹1.87 | ₹374.00 |
| 600+ | ₹1.84 | ₹1,104.00 |
| 2,000+ | ₹1.81 | ₹3,620.00 |
20 × ₹1.91
₹38.20
excl. GST
₹45.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
PESD5V0L1BSF-TP
₹38.20 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.8V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.008 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 0.6x0.3x0.3mm
- Ultra low capacitance: 15pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically <1 ns
