NexperiaDatasheet (PDF)

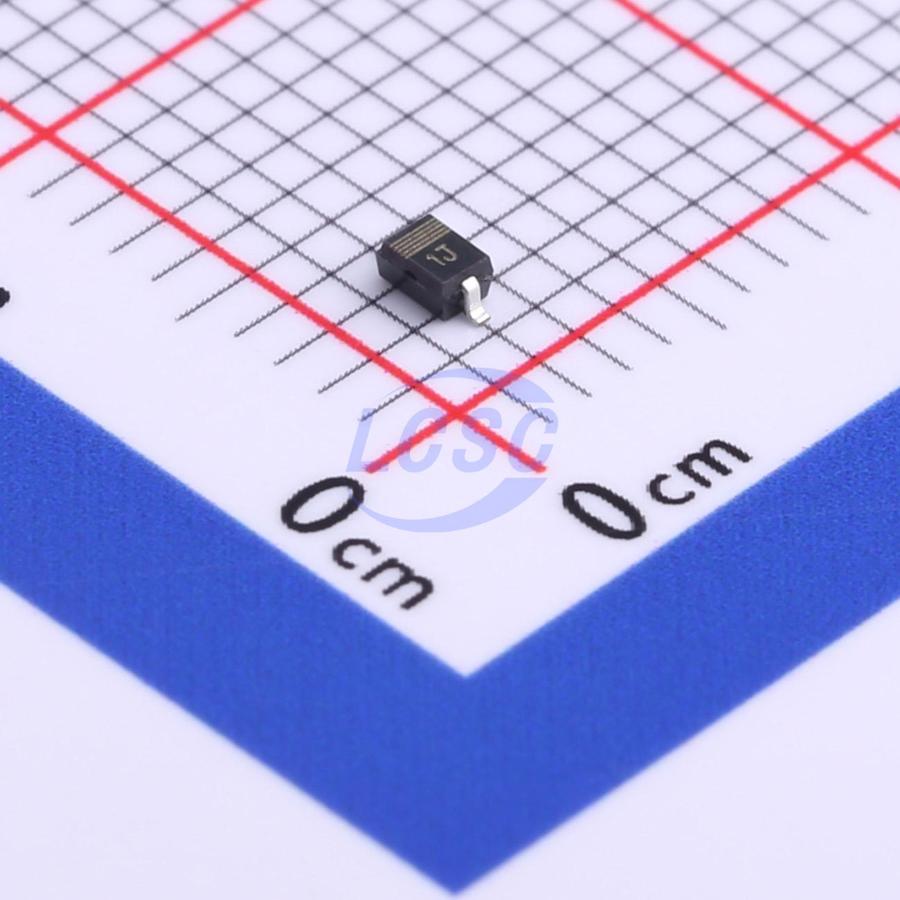

PESD5V0L1UA,115
12VC Clamp 3.5A@8/20us Ipp ESD DIODE SOD-323
SOD-323ROHS3 CompliantActive
ESD DIODE 5VWM 12VC SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0L1UA,115
- Store part #
- C552555
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
865 in stock
#C552555
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.65 | ₹138.25 |
| 50+ | ₹21.67 | ₹1,083.50 |
| 150+ | ₹19.12 | ₹2,868.00 |
| 500+ | ₹15.92 | ₹7,960.00 |
| 3,000+ | ₹14.50 | ₹43,500.00 |
| 6,000+ | ₹13.64 | ₹81,840.00 |
5 × ₹27.65
₹138.25
excl. GST
₹163.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0L1UA,115
₹138.25 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 42W
- Voltage - Breakdown
- 6.4V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Subscriber Identity Module (SIM) card protection
- Audio and video equipment
- Portable electronics
- Cellular handsets and accessories
- FireWire
- Communication systems
- High - speed data lines
Key features
- Unidirectional ESD protection of ESD protection up to 26 kV one line
- Low diode capacitance: Cd = 25 pF IEC 61000 - 4 - 2; level 4 (ESD)
- Low clamping voltage: VCL = 12 V
- AEC - Q101 qualified
- Very low leakage current: |RM = 10 nA
