TECH PUBLICDatasheet (PDF)

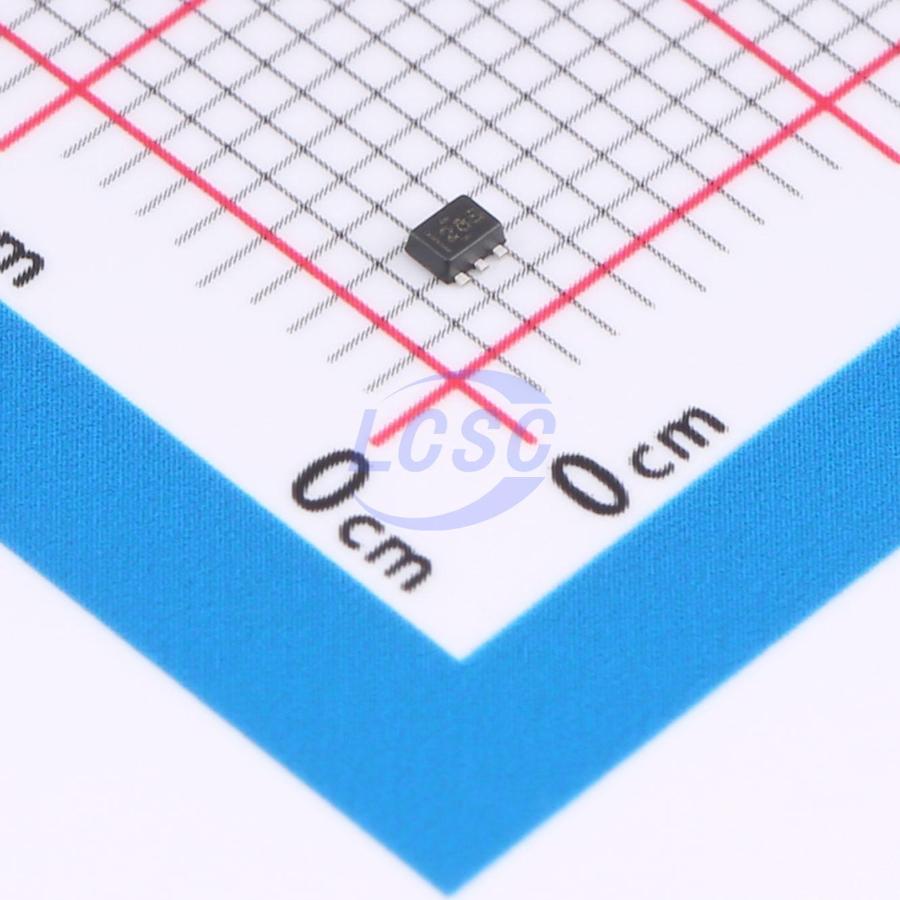

PESD5V0L4UW
12VC Clamp ESD DIODE SOT(5x3)
SOT-5X3-5RoHSActive
ESD DIODE 5VWM 12VC SOT(5x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0L4UW
- Store part #
- C2987081
- Package / case
- SOT-5X3-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,025 in stock
#C2987081
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.78 | ₹63.90 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.22 | ₹1,383.00 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 2,500+ | ₹6.51 | ₹16,275.00 |
| 4,000+ | ₹6.15 | ₹24,600.00 |
5 × ₹12.78
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PESD5V0L4UW
₹63.90 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultra low capacitance: 3.5pF(Max)
- Ultralow leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 4(EFT)40A(5/50ns)
- ROHS Compliant
