TECH PUBLICDatasheet (PDF)

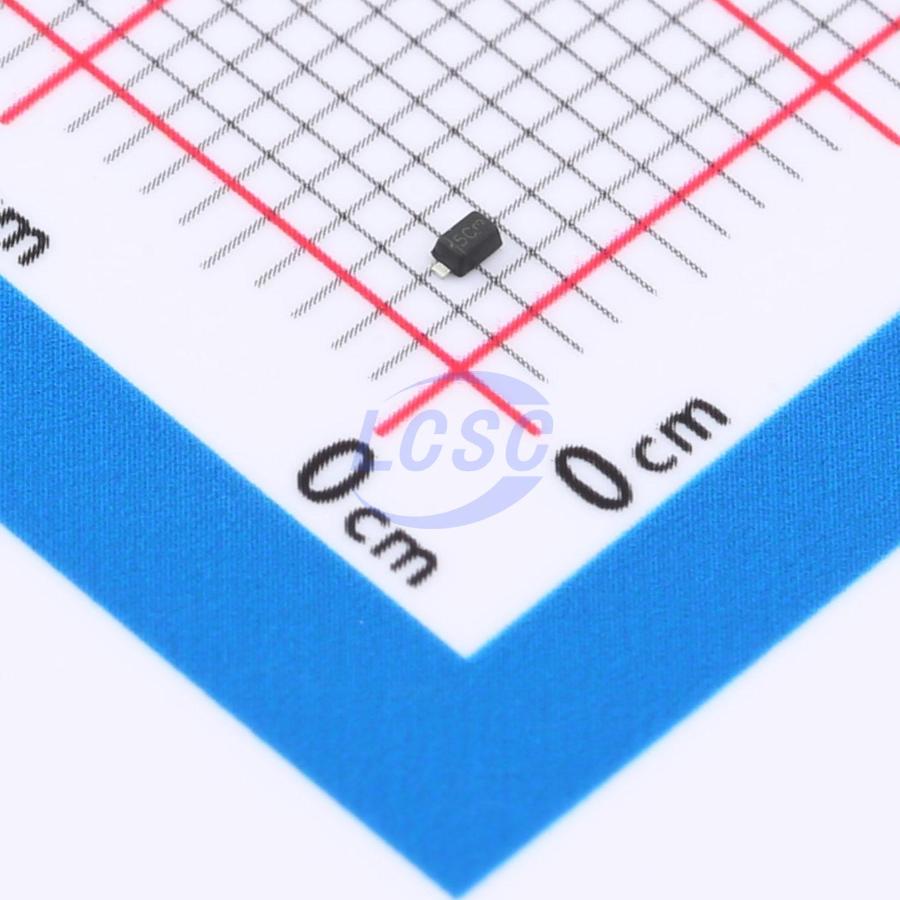

PESD5V0S1BB
10VC Clamp 8A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 10VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0S1BB
- Store part #
- C2936981
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,280 in stock
#C2936981
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.48 | ₹89.60 |
| 200+ | ₹3.53 | ₹706.00 |
| 600+ | ₹2.99 | ₹1,794.00 |
| 3,000+ | ₹2.42 | ₹7,260.00 |
| 9,000+ | ₹2.14 | ₹19,260.00 |
| 21,000+ | ₹2.00 | ₹42,000.00 |
20 × ₹4.48
₹89.60
excl. GST
₹105.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0S1BB
₹89.60 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Low operating voltage: ±5V
- Ultra low capacitance: 15pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically <1 ns
