TECH PUBLICDatasheet (PDF)

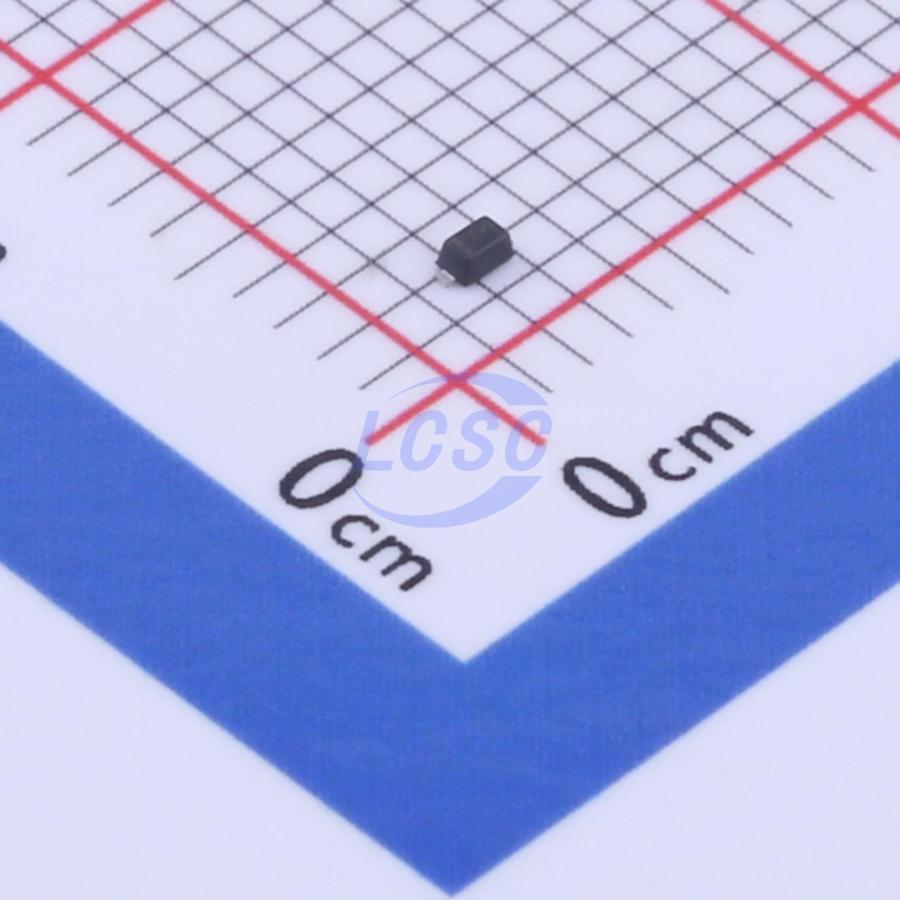

PESD5V0S1BB-TP
10VC Clamp 9A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 10VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0S1BB-TP
- Store part #
- C907862
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C907862
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.59 | ₹91.80 |
| 200+ | ₹3.63 | ₹726.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.46 | ₹7,380.00 |
| 9,000+ | ₹2.18 | ₹19,620.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.59
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0S1BB-TP
₹91.80 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
Key features
- Protects one data or power line
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD5Z5.0CT1G#C2827553TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 1,100 | ₹3.07 · 1,100 in stock | View |
 | ESDB5V0D5#C2835419TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,200 | ₹3.25 · 2,200 in stock | View |
 | PESD5V0V1BB-TP#C2835420TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,800 | ₹3.64 · 2,800 in stock | View |
 | D5V0L1B2T#C2835421TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 5,520 | ₹3.41 · 5,520 in stock | View |
 | ESD5V0D5B#C2835452TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 11,700 | ₹3.61 · 11,700 in stock | View |
