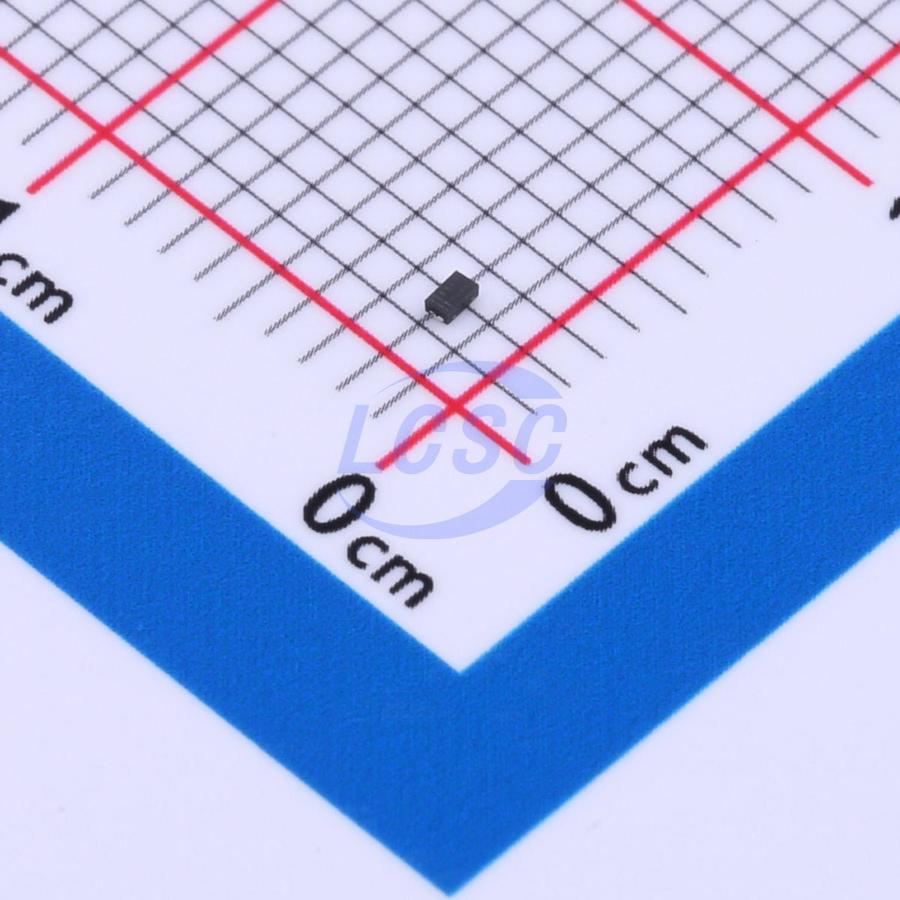

PESD5V0S1BLD,315
14VC Clamp 12A@8/20us Ipp ESD DIODE DFN1006-2(SOD-882)
ESD DIODE 5VWM 14VC DFN1006-2(SOD-882)
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0S1BLD,315
- Store part #
- C552566
- Package / case
- DFN1006-2(SOD-882)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C552566
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.52 | ₹82.60 |
| 50+ | ₹13.10 | ₹655.00 |
| 150+ | ₹11.39 | ₹1,708.50 |
| 500+ | ₹10.11 | ₹5,055.00 |
| 2,500+ | ₹9.08 | ₹22,700.00 |
| 5,000+ | ₹8.56 | ₹42,800.00 |
5 × ₹16.52
₹82.60
excl. GST
₹97.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD5V0S1BLD,315
₹82.60 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 130W
- Number of Channels
- 1
- Voltage - Breakdown
- 5.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.008 g
Overview
Bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Communication systems
- Portable electronics
Key features
- Bidirectional ESD protection of one line
- Ultra small SMD plastic package
- Solderable side pads
- Package height typ. 0.37 mm
- Low clamping voltage: VCL = 14V
- ESD protection up to 30 kV IEC 61000 - 4 - 2; level 4 (ESD)
- IEC 61000 - 4 - 5 (surge); |PP = 12 A
- Max. peak pulse power: PPPM = 130 W
- Ultra low leakage current: IRM = 5 nA
