NexperiaDatasheet (PDF)

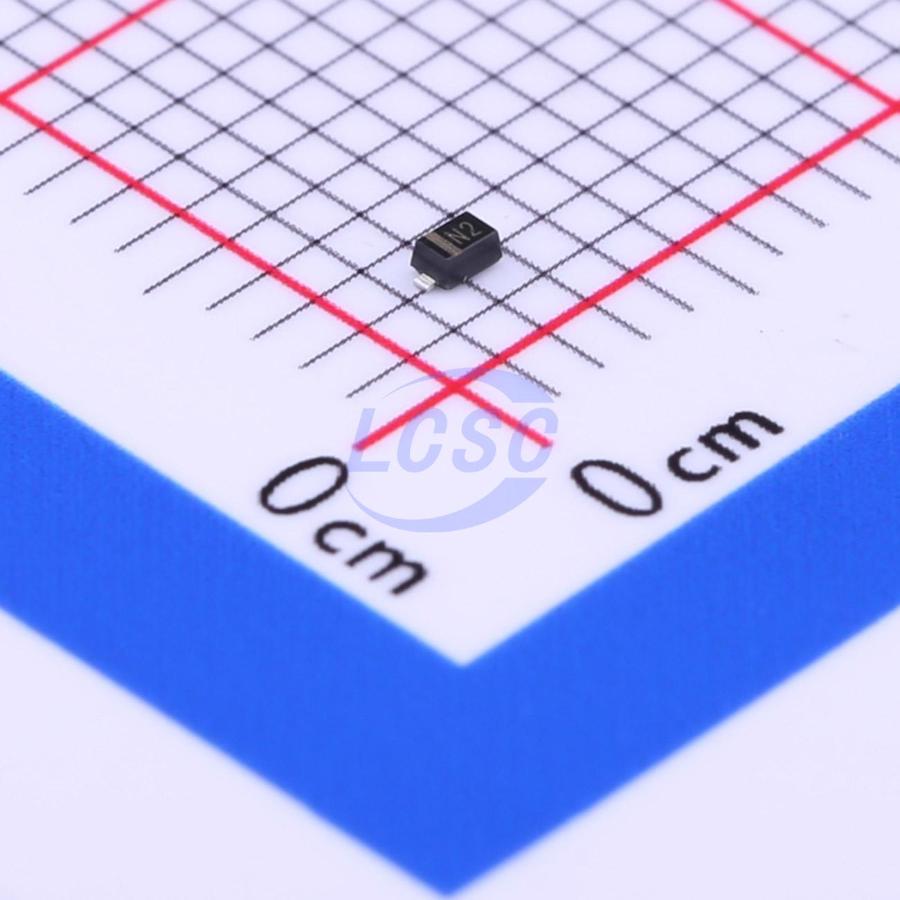

PESD5V0S1UB,115
20VC Clamp 15A Ipp ESD DIODE SOD-523
SOD-523ROHS3 CompliantActive
ESD DIODE 5VWM 20VC SOD-523
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0S1UB,115
- Store part #
- C85390
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,617 in stock
#C85390
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.65 | ₹71.65 |
| 10+ | ₹57.29 | ₹572.90 |
| 30+ | ₹50.09 | ₹1,502.70 |
| 100+ | ₹42.90 | ₹4,290.00 |
| 500+ | ₹38.78 | ₹19,390.00 |
| 1,000+ | ₹36.59 | ₹36,590.00 |
1 × ₹71.65
₹71.65
excl. GST
₹84.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0S1UB,115
₹71.65 for 1 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 15A
- Peak Pulse Power Dissipation (Ppp)
- 260W@8/20us
- Voltage - Breakdown
- 6.4V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.021 g
Overview
Unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- Data lines
Key features
- Unidirectional ESD protection of one line
- Low clamping voltage: V_CL = 20 V at I_PPM = 15 A
- ESD protection up to 30 kV
- IEC 61000-4-5 (surge); I_PPM = 15 A at t_p = 8/20 µs
