TECH PUBLICDatasheet (PDF)

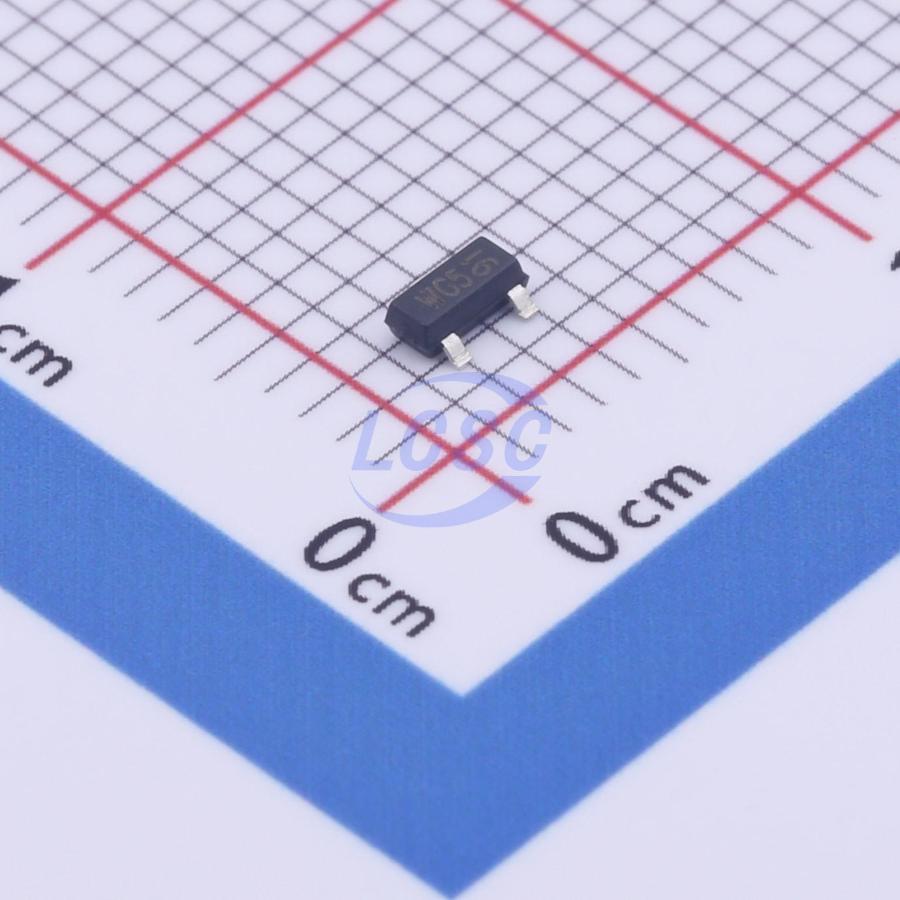

PESD5V0S2BT
10VC Clamp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 5VWM 10VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0S2BT
- Store part #
- C2841440
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C2841440
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.72 | ₹57.20 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.41 | ₹10,230.00 |
| 6,000+ | ₹3.07 | ₹18,420.00 |
| 9,000+ | ₹2.90 | ₹26,100.00 |
10 × ₹5.72
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0S2BT
₹57.20 for 10 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Voltage - Breakdown
- 6.4V
- type
- ESD
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box Industrial Controls
Key features
- Uitra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 10A (8/20μs)
