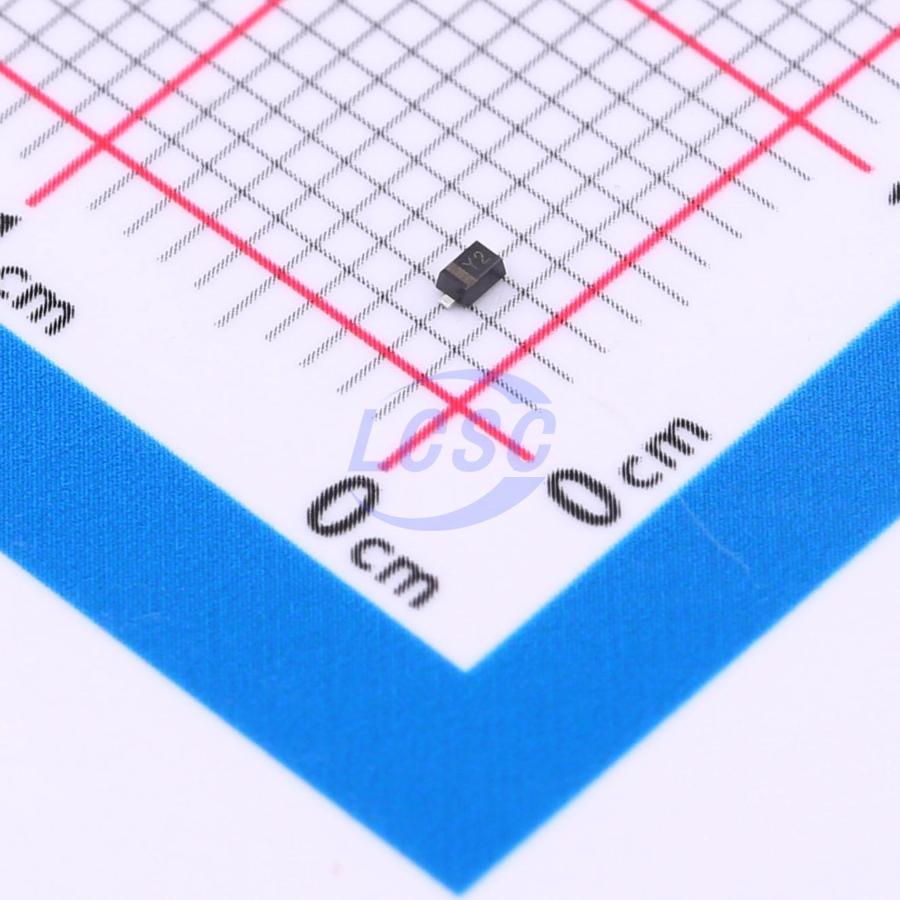

PESD5V0X1UAB,115
9VC Clamp 2A@8/20us Ipp ESD DIODE SC-79(SOD-523)
ESD DIODE 5VWM 9VC SC-79(SOD-523)
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0X1UAB,115
- Store part #
- C552592
- Package / case
- SC-79(SOD-523)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,505 in stock
#C552592
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.96 | ₹109.80 |
| 50+ | ₹17.15 | ₹857.50 |
| 150+ | ₹15.10 | ₹2,265.00 |
| 500+ | ₹12.52 | ₹6,260.00 |
| 3,000+ | ₹11.38 | ₹34,140.00 |
| 6,000+ | ₹10.69 | ₹64,140.00 |
5 × ₹21.96
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0X1UAB,115
₹109.80 for 5 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.8V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance and ultra low clamping voltage makes the device ideal for high-speed data line protection applications.
Applications
- Computers and peripherals
- Portable electronics
- Audio and video equipment
- SIM card protection
- Cellular handsets and accessories
- USB, HDMI, FireWire 10/100/1000 Mbit/s Ethernet
- High-speed data lines
- Communication systems
Key features
- ESD protection of one line
- ESD protection up to 15 kV
- Ultra low diode capacitance Cd = 1.55 pF
- IEC 61000-4-2; level 4 (ESD)
- Ultra low clamping voltage: VCL = 9 V
- IEC 61000-4-5 (surge); IPP = 2 A
- Ultra low leakage current: |IRM| = 1 nA
- AEC-Q101 qualified
