NexperiaDatasheet (PDF)

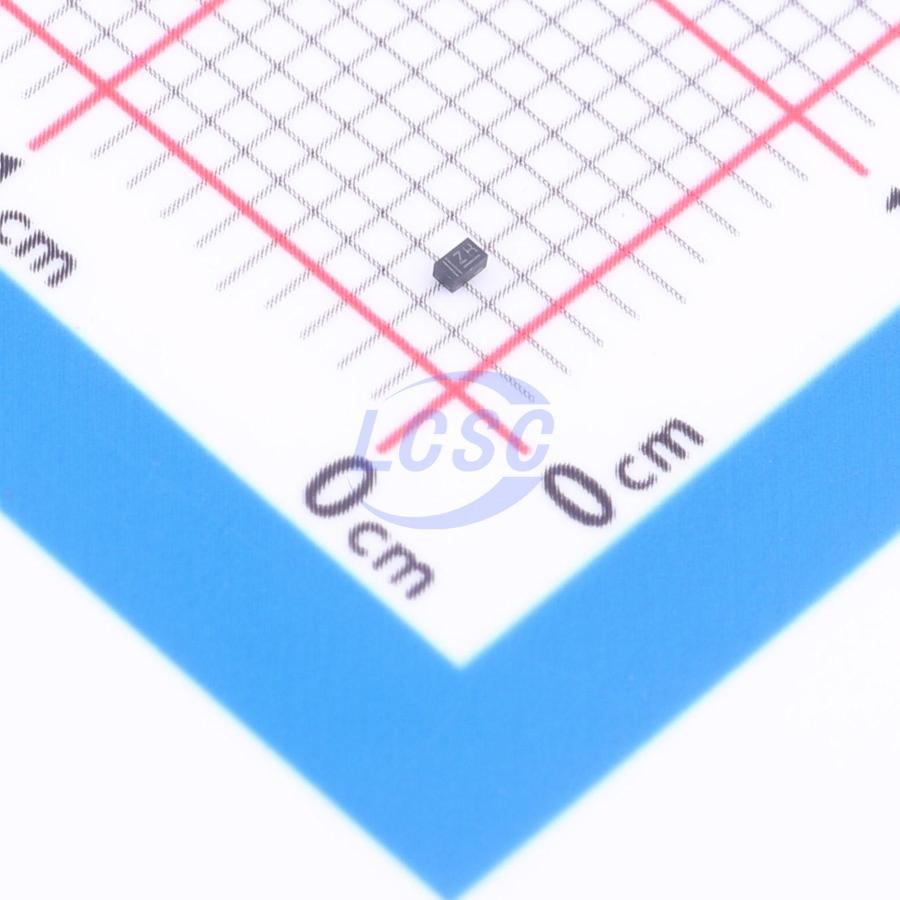

PESD5V0X2UMYL
14VC Clamp ESD DIODE SOT-883
SOT-883ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0X2UMYL
- Store part #
- C552596
- Package / case
- SOT-883
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
199 in stock
#C552596
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹31.67 | ₹31.67 |
| 10+ | ₹31.02 | ₹310.20 |
| 30+ | ₹30.38 | ₹911.40 |
| 100+ | ₹29.94 | ₹2,994.00 |
1 × ₹31.67
₹31.67
excl. GST
₹37.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD5V0X2UMYL
₹31.67 for 1 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -65℃~+150℃
- Number of Channels
- 2
- Voltage - Breakdown
- 7.5V
- type
- ESD
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
Ultra low capacitance unidirectional double ElectroStatic Discharge (ESD) protection diode in a DFN1006-3 (SOT883) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect up to two signal lines from the damage caused by ESD and other transients.
Applications
- High - speed data lines
- Portable electronics
- Communication systems
- Computers and peripherals
Key features
- Ultra low diode capacitance: Cd = 0.50 pF
- ESD protection up to 10 kV
- IEC61000 - 4 - 2 lPPM = 1.5 A
- IEC 61643 - 321 (surge)
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAR0502P1G#C47117596TECH PUBLIC · DFN1006-3 | TECH PUBLIC | DFN1006-3 | 700 | ₹5.07 · 700 in stock | View |
 | PESD5V0X2UMBYL#C478183Nexperia · DFN1006-3L | Nexperia | DFN1006-3L | On request | ₹13.60 · 0 in stock | View |
