TECH PUBLICDatasheet (PDF)

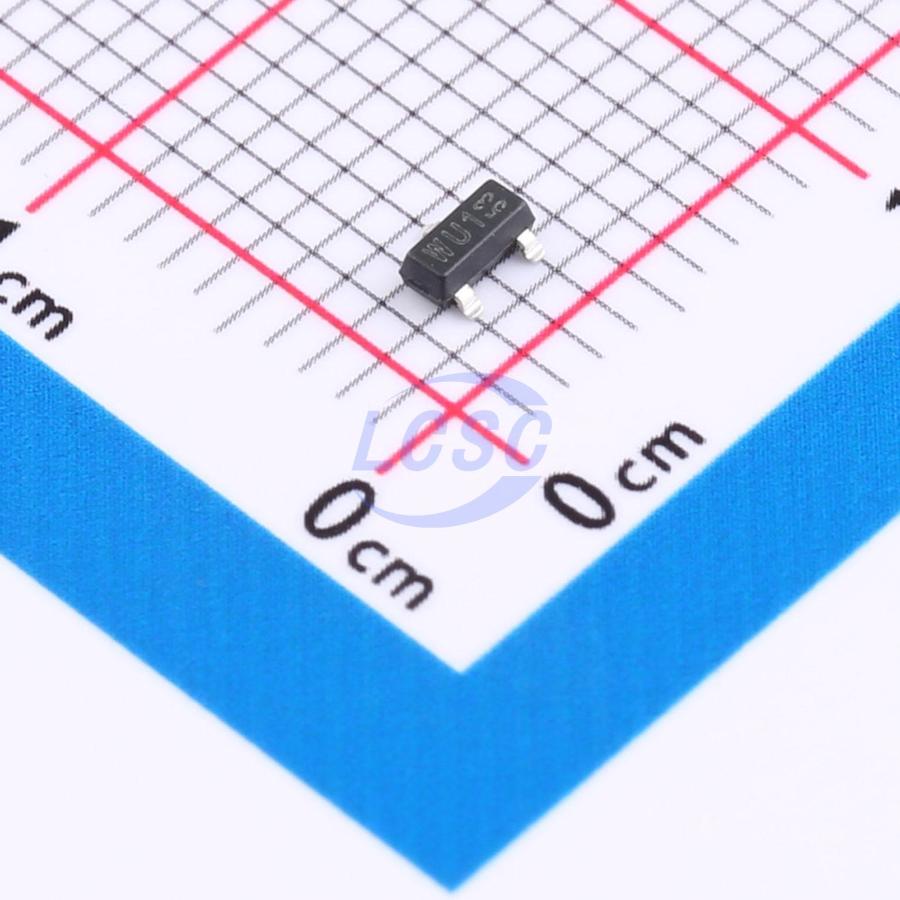

PESD5V2S2UT
15VC Clamp 10A Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 5VWM 15VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V2S2UT
- Store part #
- C2827690
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C2827690
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.03 | ₹100.60 |
| 200+ | ₹4.05 | ₹810.00 |
| 600+ | ₹3.52 | ₹2,112.00 |
| 3,000+ | ₹2.67 | ₹8,010.00 |
| 9,000+ | ₹2.38 | ₹21,420.00 |
| 21,000+ | ₹2.24 | ₹47,040.00 |
20 × ₹5.03
₹100.60
excl. GST
₹118.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V2S2UT
₹100.60 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I2C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- Working voltages: 5V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
