TECH PUBLICDatasheet (PDF)

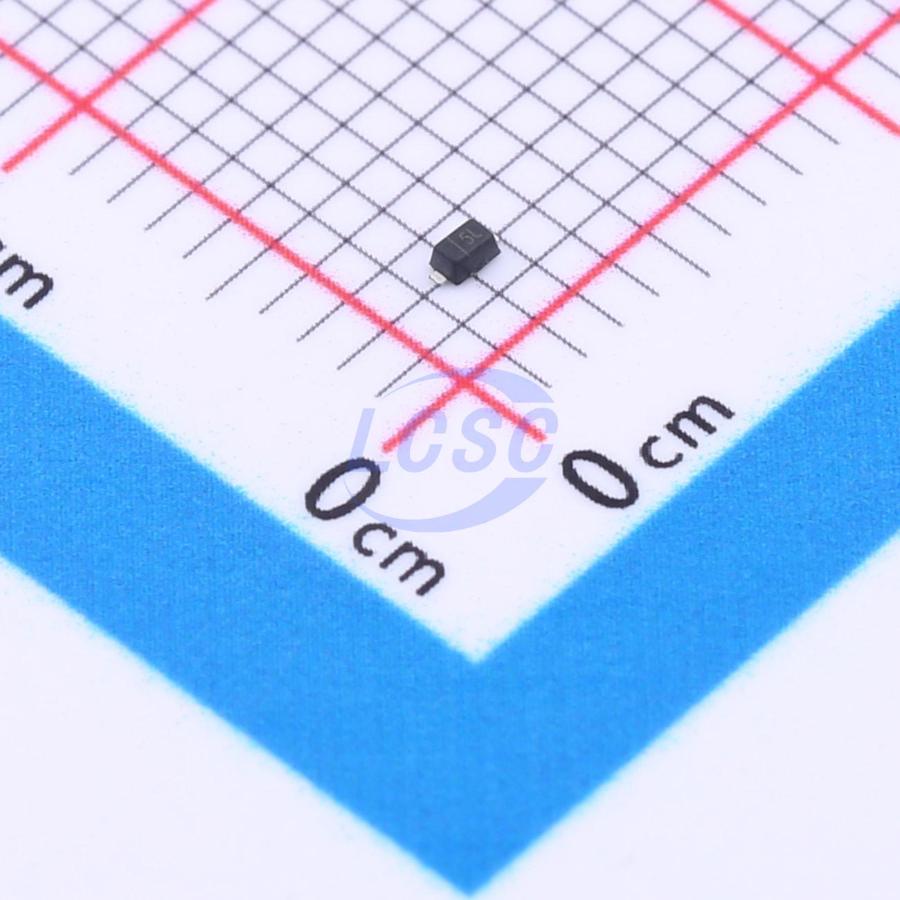

PESD7351XV2T1G
14VC Clamp 4A@8/20us Ipp SOD-523
SOD-523RoHSActive
3.3VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD7351XV2T1G
- Store part #
- C2912559
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,800 in stock
#C2912559
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.41 | ₹108.20 |
| 200+ | ₹4.25 | ₹850.00 |
| 600+ | ₹3.61 | ₹2,166.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 9,000+ | ₹2.61 | ₹23,490.00 |
| 21,000+ | ₹2.42 | ₹50,820.00 |
20 × ₹5.41
₹108.20
excl. GST
₹127.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD7351XV2T1G
₹108.20 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.025 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays
Key features
- Ultra low capacitance: 0.5pF typical
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD3V3U1UB#C2905628TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,260 | ₹5.76 · 2,260 in stock | View |
