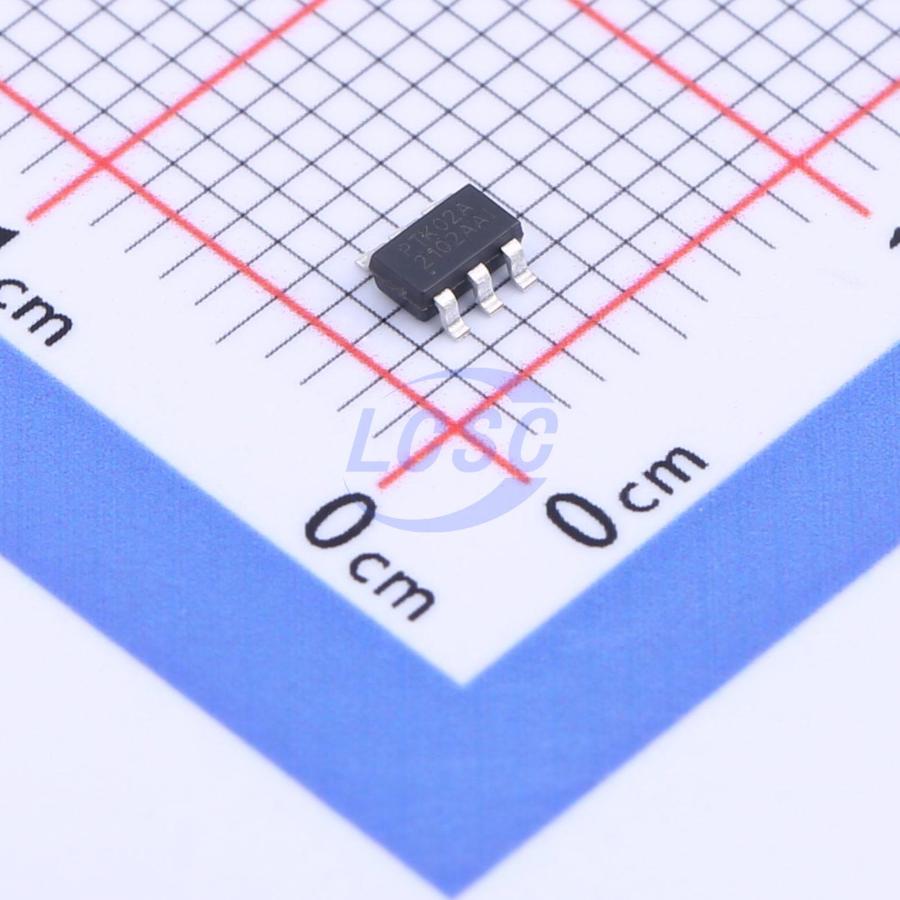

PFC161-U06

PFC161 is an IO-type, static MTP microcontroller. Based on a RISC architecture, most instructions execute in a single cycle, with only a small number of indirect addressing instructions requiring two instruction cycles. The PFC161 integrates 2KW MTP program memory and 128 bytes of data memory. It features up to 7 capacitive touch key controllers and one hardware comparator. The PFC161 provides one 16-bit hardware counter (Timer16) and two 8-bit counters with PWM (Timer2, Timer3).

Key features

• High EFT series, specially designed for AC-powered products with RC voltage-dropping circuits, requiring strong noise immunity, or with high EFT safety test requirements (±4KV)
• Operating temperature range: -40°C ~ 85°C
• ESD > 8 KV
• Guaranteed defect rate below 500 PPM
• Guaranteed product lifetime over 5 years (soldering temperature ≤260°C)
• 2KW MTP program space (programmable 1000 times)
• 128 Bytes data space
• Up to 7 IO pins selectable as touch keys
• One hardware 16-bit timer
• Two 8-bit timers capable of generating 6/7/8-bit PWM waveforms
• One hardware comparator
• Up to 8 IO pins with selectable pull-up/pull-down resistors
• Each IO pin configurable as wake-up source
• Bandgap circuit provides 1.20V reference voltage
• Clock sources: IHRC, ILRC, and EOSC (XTAL)
• 8-level selectable LVR voltage from 1.8V to 4.5V
• 16-level selectable LVD detection voltage from 1.8V to 4.5V
• Three selectable external interrupt pins
• 8-bit high-performance RISC CPU
• 86 highly efficient instructions
• Most instructions are single-cycle (1T)
• Programmable stack pointer and stack depth
• Data access supports direct and indirect addressing modes
• Register address space, data memory space, and MTP program space are fully independent
