VBsemi ElecDatasheet (PDF)

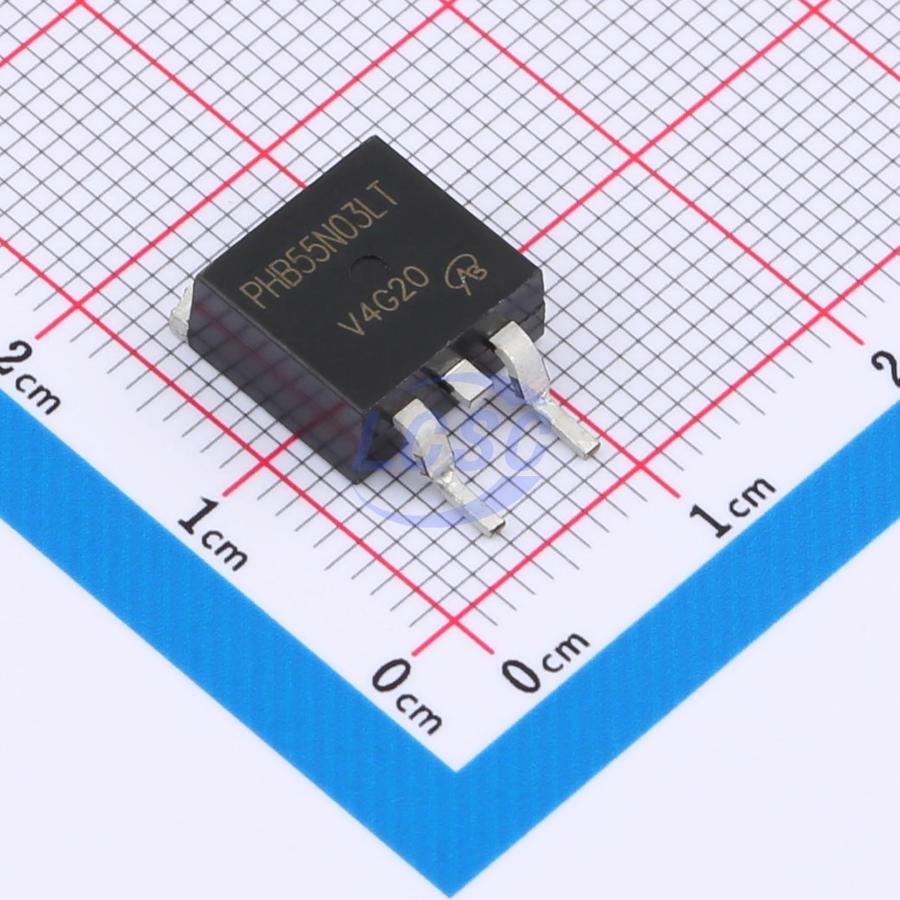

PHB55N03LT-VB
N-Channel 30V 50A 120W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 30V 50A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHB55N03LT-VB
- Store part #
- C29779054
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C29779054
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.06 | ₹89.06 |
| 10+ | ₹71.64 | ₹716.40 |
| 50+ | ₹63.03 | ₹3,151.50 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.37 | ₹24,685.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹89.06
₹89.06
excl. GST
₹105.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PHB55N03LT-VB
₹89.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 255pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 1.201nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 12mΩ@10V;18mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.28 g
Overview
Applications
- OR Gate - Server - DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB147N03LG-VB#C20755358VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹89.06 · 10 in stock | View |
 | VBL1310#C480987VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 2 | ₹92.64 · 2 in stock | View |
 | P3056LSG-VB#C18794992VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹93.72 · 20 in stock | View |
 | B11NM60-VB#C20755730VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 15 | ₹89.06 · 15 in stock | View |
| PSMN022-30BL,118-VB#C52190986VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹102.32 · 5 in stock | View | |
