TECH PUBLIC

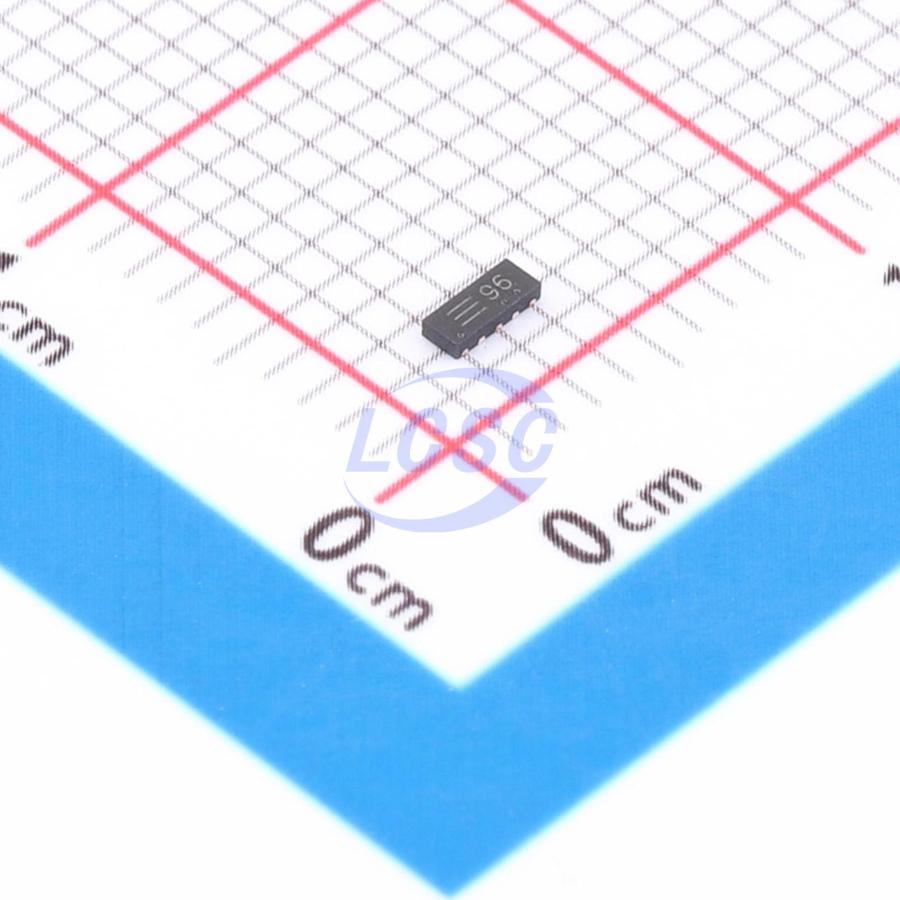

PHDMI2F4X-TP

16V 4A@8/20us 80W@8/20us 6.5V Unidirectional 5.5V DFN2510-10 TVS Diodes

DFN2510-10RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: PHDMI2F4X-TP
Store part #: C54194971
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,890 in stock

#C54194971

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
10+	₹8.02	₹80.20
100+	₹6.31	₹631.00
300+	₹5.45	₹1,635.00
3,000+	₹4.80	₹14,400.00
6,000+	₹4.30	₹25,800.00
9,000+	₹4.04	₹36,360.00

Quantity (min 10, multiples of 10)

10 × ₹8.02

₹80.20

excl. GST

₹94.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PHDMI2F4X-TP

₹80.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6.5V
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.028 g

Overview

Applications

HDMI
DVI
UDI
MDDI port
PCI Express
Serial ATA

Key features

Ultra-low capacitance: 0.3pF typical (I/O to I/O)
Ultra-low leakage: nanoampere-level
Low operating voltage: 5.5V
Low clamping voltage
Protects up to 4 data lines and 1 power line
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±25kV
Contact discharge: ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge): 4A (8/20μs)
RoHS compliant
