HXY MOSFETDatasheet (PDF)

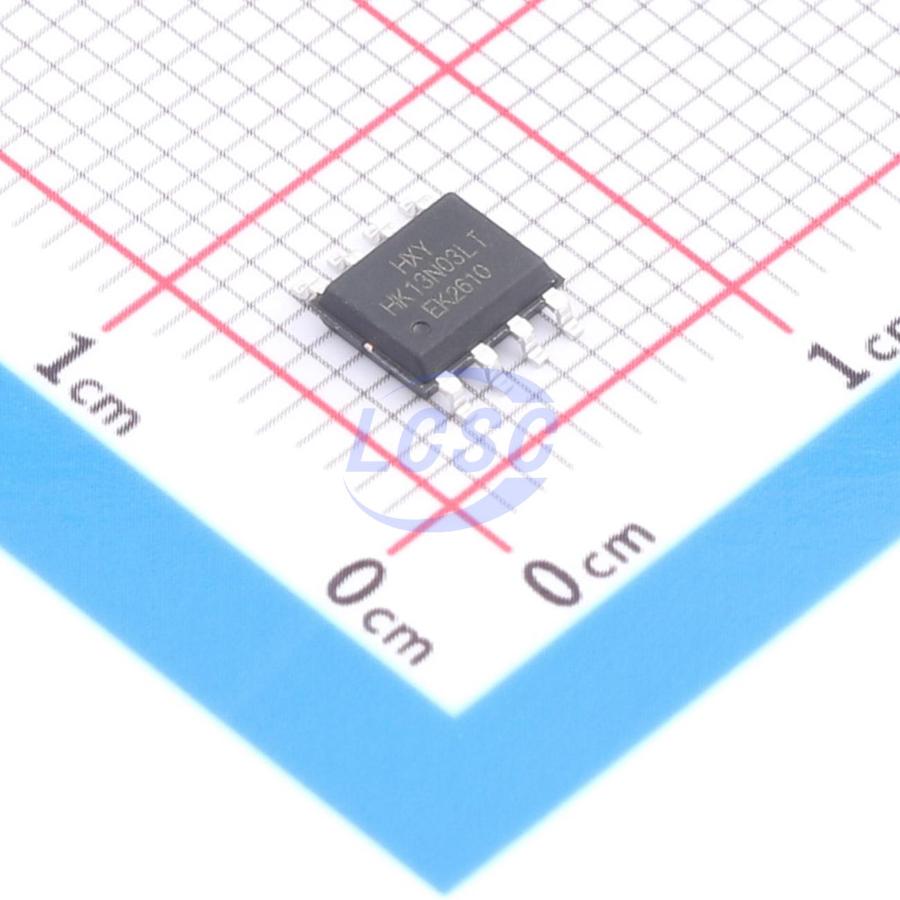

PHK13N03LT-HXY
30V 9A 3.1W 16mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PHK13N03LT-HXY
- Store part #
- C54582826
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582826
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.75 | ₹273.75 |
| 50+ | ₹43.75 | ₹2,187.50 |
| 150+ | ₹39.23 | ₹5,884.50 |
| 500+ | ₹30.18 | ₹15,090.00 |
| 3,000+ | ₹27.60 | ₹82,800.00 |
| 6,000+ | ₹25.86 | ₹1,55,160.00 |
5 × ₹54.75
₹273.75
excl. GST
₹323.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PHK13N03LT-HXY
₹273.75 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 68pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 484pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 52pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
The PHK13N03LT utilizes advanced trench technology to deliver excellent on-state resistance RDS(ON), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = 30V, drain current ID = 9A
- On-resistance RDS(ON) < 20mΩ at gate-source voltage VGS = 10V
