DIODES

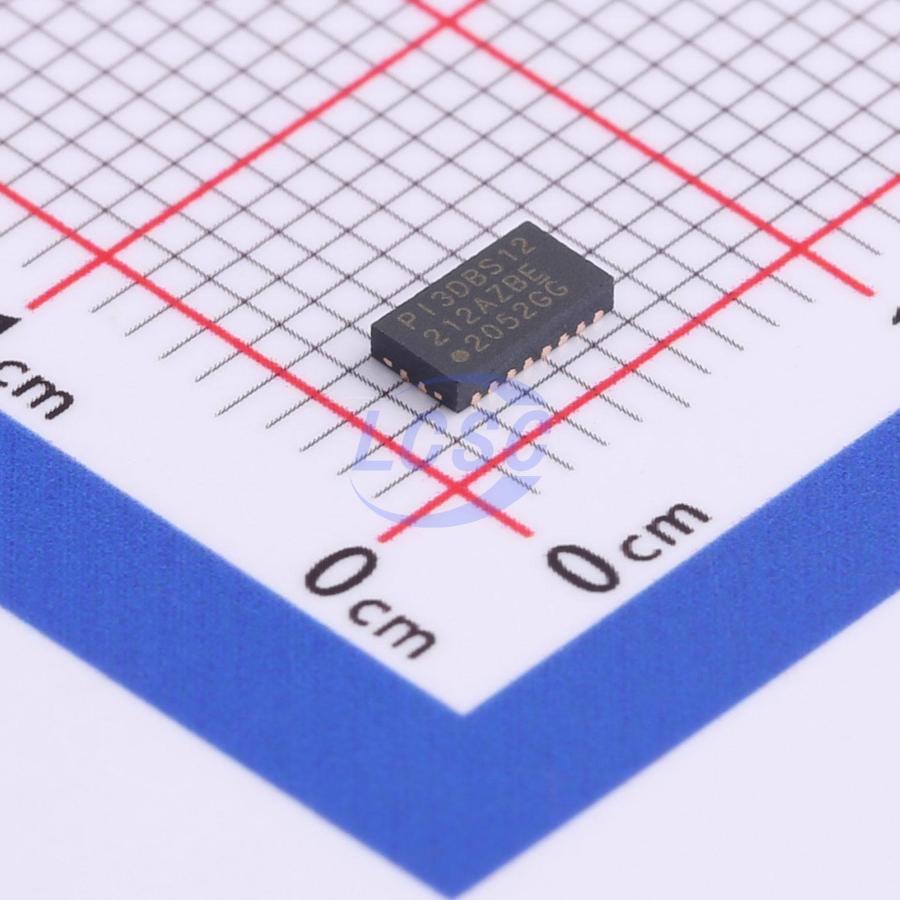

PI3DBS12212AZBEX

3.3V 10.6GHz 2:1 QFN-20(2.5x4.5) Analog Switches - Special Purpose RoHS

QFN-20(2.5x4.5)ROHS3 CompliantActive

1-12Gbps 1-Lane 2:1 Mux/De-Mux Switch

Manufacturer: DIODES
Manufacturer part #: PI3DBS12212AZBEX
Store part #: C526705
Package / case: QFN-20(2.5x4.5)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,412 in stock

#C526705

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹226.44	₹226.44
10+	₹184.65	₹1,846.50
30+	₹161.59	₹4,847.70
100+	₹135.74	₹13,574.00
500+	₹124.11	₹62,055.00
1,000+	₹118.94	₹1,18,940.00

Quantity (min 1)

1 × ₹226.44

₹226.44

excl. GST

₹267.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI3DBS12212AZBEX

₹226.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3.3V
-3dB Bandwidth: 10.6GHz
Switch Circuit: 2:1
Operating Temperature: -40℃~+85℃
Features: Bidirectional analog channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

The PI3DBS12212A is an 4 to 2 differential channel multiplexer/ demultiplexer switch. This solution can switch multiple signal types up to data rate of 12Gbps. Using a unique design technique, the impedance of the switch is minimized such that the attenuation observed through the switch is minimal. The unique design technique also offers a layout targeted for USB3.0, USB3.1, 10GE, Thunderbolt, and SAS3.0 signals, which minimizes the channel to channel skew as well as channel to channel crosstalk as required by high speed signals.

Applications

Routing high speed differential signals such as USB3.0, USB3.1, 10GE, Thunderbolt, and SAS3.0.

Key features

2 Differential Channel, 2:1 Mux/DeMux
Up to 12 Gbps for applications including USB3.0, USB3.1, 10GE, Thunderbolt, and SAS3.0
Bi-directional operation
3dB bandwith: 10.6GHz
Low Bit-to-Bit Skew, 1ps typ
Low channel-to-channel skew, 7ps typ
Low insertion loss: -1.5dB@5 GHz, -1.7dB@6 GHz
Return loss: -19.6dB@5 GHz, -17.2dB@6 GHz
Low Crosstalk: -30.5dB@6 GHz
Low Off Isolation: -17.1dB@6 GHz
Low power consumption - 200μA typ
Supply Voltage 3.3V
Industrial Temperature Range: -40°C to 85°C
ESD – 2KV Human Body Model (HBM)
Packaging (Pb-free & Green): – 20-contact, TQFN(ZB20), 2.5x4.5mm – 18 contact, X2QFN (XUA18), 2x2mm
