DIODESDatasheet (PDF)

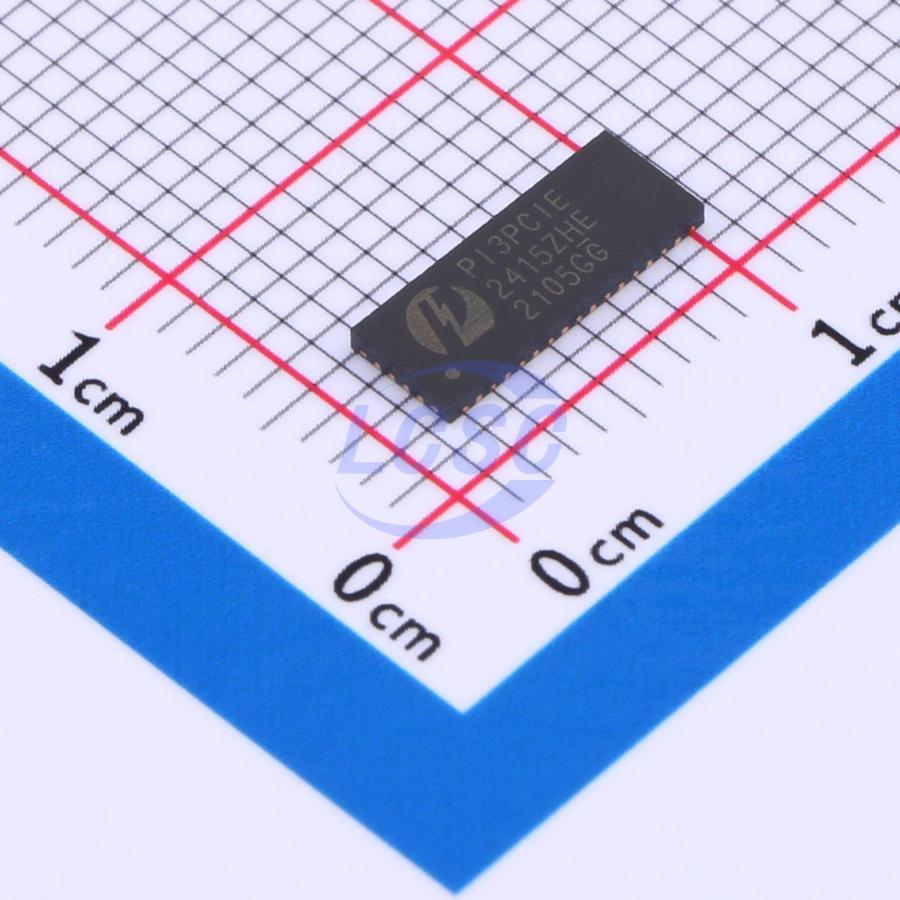

PI3PCIE2415ZHEX
3.3V 4 5Gbps TQFN-42-EP(3.5x9) Analog Switches - Special Purpose RoHS
TQFN-42-EP(3.5x9)ROHS3 CompliantDiscontinued
3.3V PCI Express? 2.0, 2-Lane, 2:1 Mux/DeMux Switch
- Manufacturer
- DIODES
- Manufacturer part #
- PI3PCIE2415ZHEX
- Store part #
- C2150906
- Package / case
- TQFN-42-EP(3.5x9)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,486 in stock
#C2150906
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.06 | ₹230.06 |
| 10+ | ₹214.83 | ₹2,148.30 |
| 30+ | ₹205.17 | ₹6,155.10 |
| 100+ | ₹195.29 | ₹19,529.00 |
| 500+ | ₹190.79 | ₹95,395.00 |
| 1,000+ | ₹188.86 | ₹1,88,860.00 |
1 × ₹230.06
₹230.06
excl. GST
₹271.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
PI3PCIE2415ZHEX
₹230.06 for 1 + GST
Specifications
- Versions
- PCI-E 2.0
- Voltage - Supply
- 3.3V
- Input Capacitance
- 2pF
- Number of Channels
- 4
- Operating Temperature
- -40℃~+85℃
- Delay Time
- 12ns
- Data Rate
- 5Gbps
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
PI3PCIE2415 is an 8 to 4 differential channel multiplexer/demultiplexer switch. This solution can switch 2 full PCI Express 2.0, lanes to one of two locations. Using a unique design technique, the impedance of the switch can be minimized such that the attenuation observed through the switch is negligible. The unique design technique also offers a layout targeted for PCI Express signals, which minimizes the channel to channel skew as well as channel to channel crosstalk as required by the PCI Express specification.
Applications
- Routing of PCIe 2.0, signals with low signal attenuation.
Key features
- 4 Differential Channel, 2:1 Mux/DeMux
- PCI Express 2.0 Performance, 5.0Gbps
- Pinout optimized for placement between two PCIe slots
- Bi - directional operation
- Low Bit - to - Bit Skew, 5ps max
- Low Crosstalk: - 26dB@5 GHz
- Low Off Isolation: - 20dB@5 GHz
- VDD Operating Range: +3.3V
- ESD Tolerance: 2kV HBM
- Low channel - to - channel skew, 35ps max
- Packaging (Pb - free & Green): 42 - contact, TQFN (ZH42)
