DIODESDatasheet (PDF)

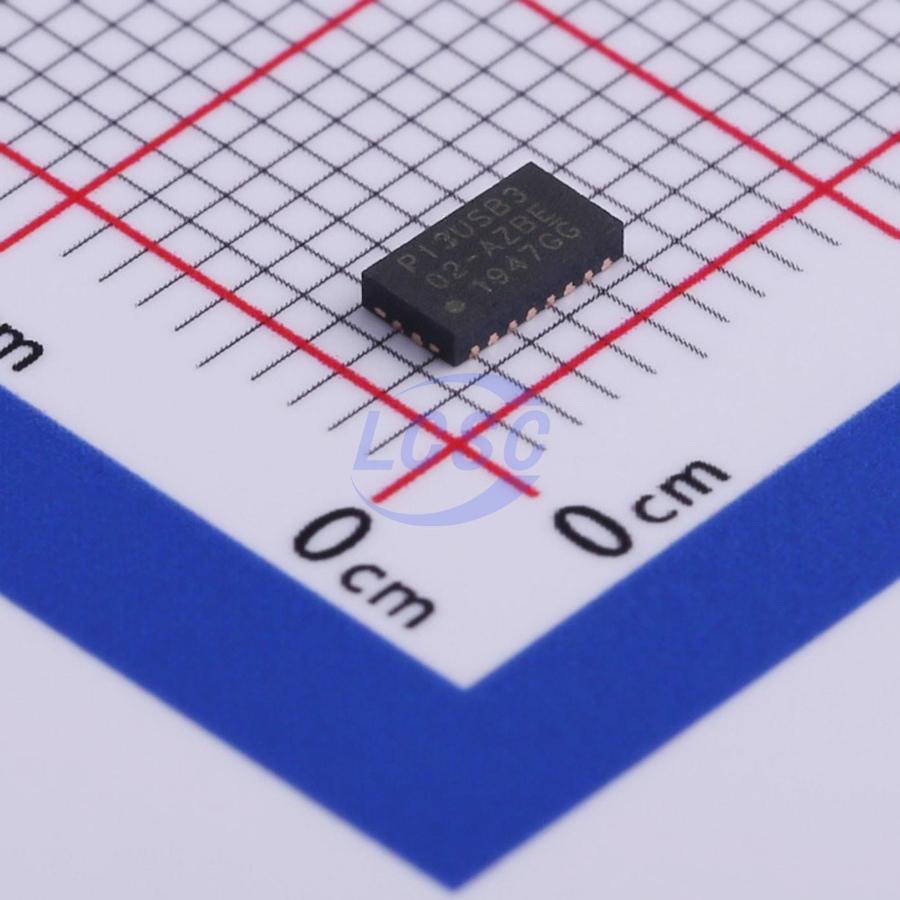

PI3USB302-AZBEX
3V~3.6V DHVQFN-20-EP(2.5x4.5) Analog Switches - Special Purpose RoHS
DHVQFN-20-EP(2.5x4.5)ROHS3 CompliantActive
USB 3.0, 1-Port, 2:1 Mux/DeMux Switch
- Manufacturer
- DIODES
- Manufacturer part #
- PI3USB302-AZBEX
- Store part #
- C500787
- Package / case
- DHVQFN-20-EP(2.5x4.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,334 in stock
#C500787
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.68 | ₹151.68 |
| 10+ | ₹126.25 | ₹1,262.50 |
| 30+ | ₹112.35 | ₹3,370.50 |
| 100+ | ₹96.49 | ₹9,649.00 |
| 500+ | ₹89.53 | ₹44,765.00 |
| 1,000+ | ₹86.27 | ₹86,270.00 |
1 × ₹151.68
₹151.68
excl. GST
₹178.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
PI3USB302-AZBEX
₹151.68 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Quiescent Supply Current
- 0.2mA
- Propagation Delay (tpd)
- 25ns@3.3V
- Operating Temperature
- -40℃~+85℃
- Features
- Output enable high-impedance
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
A 2-differential channel bi-directional multiplexer/demultiplexer switch. Due to its low bit-to-bit skew, high channel-to-channel noise isolation and bandwidth, this product is ideal for USB 3.0 signal switching at 5.0 Gbps.
Applications
- Routing USB 3.0 SuperSpeed signals
Key features
- 2 Differential Channel, 2:1 Mux/DeMux
- USB 3.0 SuperSpeed Switch
- Bi-directional Operation
- Low Bit-to-Bit Skew, 10 ps max
- 3 dB Bandwidth = 8.1 GHz
- Low channel-to-channel skew: 20 ps max
- Low insertion loss: -1 dB @ 2.5 GHz (5.0 Gbps)
- Low Crosstalk: -33 dB @ 2.5 GHz (5.0 Gbps)
- Low Off Isolation: -27 dB @ 2.5 GHz (5.0 Gbps)
- Low Return Loss: -23.3 dB @ 2.5 GHz (5.0 Gbps)
- VDD Operating Range: 3.3 V +/- 10%
- ESD Tolerance: 2 kV HBM
- Low current: 0.2 mA Typ.
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Packaging (Pb-free & Green): 20-contact, 2.5×4.5 mm TQFN (ZB)
