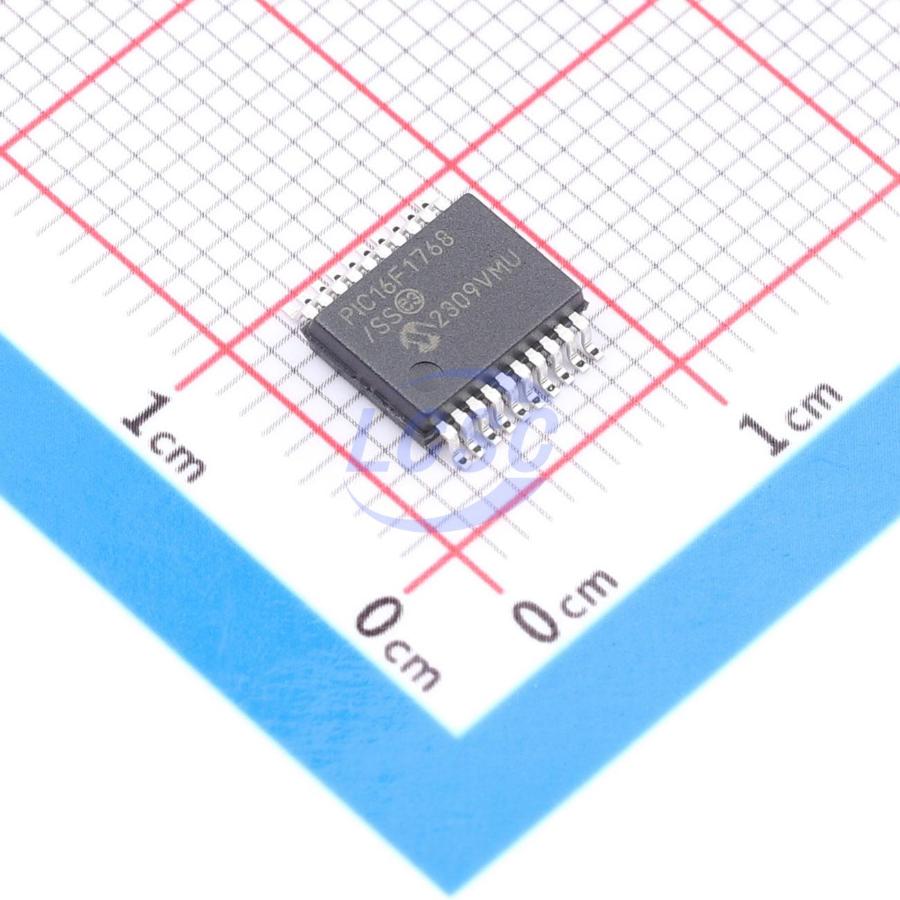

PIC16F1768T-I/SS

The PIC16(L)F1764/5/8/9 family offers intelligent analog with digital peripherals to create up to two independent closedloop channels. These 14 and 20-pin devices enable the ability to interconnect the on-chip peripherals to create custom functions specific to each application; helping simplify the implementation of a complex control system and give designers the flexibility to innovate.

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed: DC – 32 MHz clock input - 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Up to Four 8-Bit Timers
• Up to Three 16-Bit Timers
• Power-on Reset (POR)
• Configurable Power-up Timer (PWRT)
• Brown-out Reset (BOR) with Selectable Trip Point
• Extended Watchdog Timer (EWDT): - Low-power 31 kHz WDT - Software-selectable prescaler - Software-selectable enable
• Up to 14 Kbytes Flash Program Memory
• Up to 1024 Bytes Data RAM Memory
• Direct, Indirect and Relative Addressing modes
• High-Endurance Flash (HEF): - 128B of nonvolatile data storage 100K erase/write cycles
• Operating Voltage Range: - 1.8V to 3.6V (PIC16LF1764/5/8/9) - 2.3V to 5.5V (PIC16F1764/5/8/9)
• Temperature Range: - Industrial: -40℃ to +85℃ - Extended: -40℃ to +125℃
• Sleep mode: 50 nA @ 1.8V, typical
• Watchdog Timer: 500 nA @ 1.8V, typical
• Secondary Oscillator: 500 nA @ 32 kHz
• Operating Current: - 8 μA @ 32 kHz, 1.8V, typical - 32 μA/MHz @ 1.8V, typical
• Low-Power BOR (LPBOR): - 200 nA in Sleep
• Configurable Logic Cell (CLC): - Up to three CLCs; up to four selected inputs - Integrated combinational and state logic
• Up to Two Complementary Output Generators (COG): - Push-Pull, Full-Bridge and Steering modes
• Up to Two Capture/Compare/PWM (CCP) modules
• Pulse-Width Modulators (PWM): - Up to two 10-bit PWMs - Up to two 16-bit PWMs
• Peripheral Pin Select (PPS): - Configure any digital pin to output
• Serial Communications: - Enhanced USART (EUSART) - SPI, I2C, RS-232, RS-485, LIN compatible - Auto-Baud Detect, auto-wake-up on start
• Up to 18 I/O Pins: - Individually programmable pull-ups - Slew rate control - Interrupt-On-Change (IOC) with edge select
• Up to Two Data Signal Modulators (DSM)
• 10-Bit Analog-to-Digital Converter (ADC): - Up to 12 external channels - Conversion available during Sleep
• Up to Two Operational Amplifiers (OPA): - Selectable internal and external channels
• Up to Four Fast Comparators (COMP): - Up to five external inverting inputs - Up to eight external noninverting inputs - Fixed Voltage Reference at noninverting input(s) - Comparator outputs externally accessible
• Digital-to-Analog Converters (DAC): - Up to two 10-bit resolution DACs - Up to two 5-bit resolution DACs
• Voltage Reference: - Fixed Voltage Reference (FVR): 1.024V, 2.048V and 4.096V output levels
• Zero-Cross Detector (ZCD): - Detect high-voltage AC signal
• Programmable Ramp Generator (PRG): - Slope compensation - Ramp generation
• High-Current Drive I/Os: - 100 mA capacity @ 5V
• 16 MHz Internal Oscillator: - ±1% at calibration - Selectable frequency range, 32 MHz to 31 kHz
• 31 kHz Low-Power Internal Oscillator
• 4x Phase-Locked Loop (PLL): - For up to 32 MHz internal operation
• External Oscillator Block with: - Three External Clock modes up to 32 MHz
