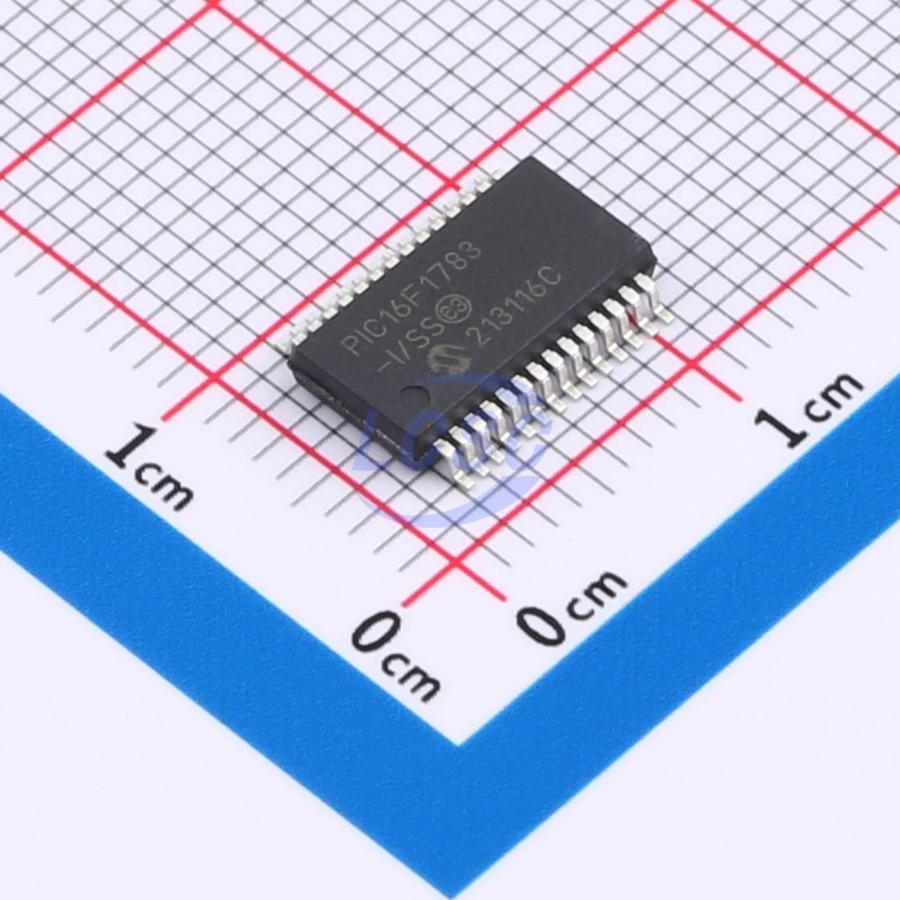

PIC16F1783T-I/SS

Key features

• Only 49 Instructions
• Operating Speed:
• DC – 32 MHz clock input
• DC – 125 ns instruction cycle
• Interrupt Capability with Automatic Context Saving
• 16-Level Deep Hardware Stack with optional Overflow/Underflow Reset
• Direct, Indirect and Relative Addressing modes:
• Two full 16-bit File Select Registers (FSRs)
• FSRs can read program and data memory
• Standby Current (PIC16LF1782/1783): 50 nA @ 1.8V, typical
• Watchdog Timer Current (PIC16LF1782/1783): 500 nA @ 1.8V, typical
• Timer1 (32.768 kHz Real-Time Clock) Oscillator Current (PIC16LF1782/1783): 500 nA @ 1.8V, typical
• Operating Current (PIC16LF1782/1783):
• 4 μA @ 32 kHz, 1.8V, typical
• 150 μA @ 1 MHz, 1.8V, typical
• Up to 4 KW Flash Program Memory:
• Self-programmable under software control
• Programmable code protection
• Programmable write protection
• 256 Bytes of Data EEPROM
• Up to 512 Bytes of RAM
• Two Programmable Switch Mode Controller (PSMC) modules:
• Digital and/or analog feedback control of PWM frequency and pulse begin/end times
• 16-bit Period, Duty Cycle and Phase
• 16 ns clock resolution
• Supports single PWM, complimentary, pushpull and three-phase modes of operation
• Dead-band control with 8-bit counter
• Auto-shutdown and restart
• Leading and falling edge blanking
• Burst mode
• Analog-to-Digital Converter (ADC):
• Fully differential 12-bit converter
• 100 ksps conversion rate
• 11 single-ended channels
• 5 differential channels
• Positive and negative reference selection
• 8-bit Digital-to-Analog Converter (DAC):
• Output available externally
• Positive and negative reference selection
• Internal connections to comparators, op amps, Fixed Voltage Reference (FVR) and ADC
• Three High-Speed Comparators:
• 30 ns response time
• Rail-to-rail inputs
• Software selectable hysteresis
• Internal connection to op amps, FVR and DAC
• Two Operational Amplifiers:
• Rail-to-rail inputs/outputs
• High/Low selectable Gain Bandwidth Product
• Internal connection to DAC and FVR
• Fixed Voltage Reference (FVR):
• 1.024V, 2.048V and 4.096V output levels
• Internal connection to ADC, Comparators and DAC
• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
• Enhanced Timer1:
• 16-bit timer/counter with prescaler
• External Gate Input mode
• Dedicated low-power 32 kHz oscillator driver
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture/Compare/PWM modules (CCP):
• 16-bit Capture, maximum resolution 12.5 ns
• 16-bit Compare, max resolution 31.25 ns
• 10-bit PWM, max frequency 32 kHz
• Master Synchronous Serial Port (SSP) with SPI and I²C with:
• 7-bit address masking
• SMBus/PMBus compatibility
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART):
• RS-232, RS-485 and LIN compatible
• Auto-baud detect
• Auto-wake-up on start
• Operate up to 32 MHz from Precision Internal Oscillator:
• Factory calibrated to ±1%, typical
• Software selectable frequency range from 32 MHz to 31 kHz
• 31 kHz Low-Power Internal Oscillator
• 32.768 kHz Timer1 Oscillator:
• available as system clock
• Low power RTC
• External Oscillator Block with:
• 4 crystal/resonator modes up to 32 MHz using 4x PLL
• 3 external clock modes up to 32 MHz
• 4x Phase-Locked Loop (PLL)
• Fail-Safe Clock Monitor: Detect and recover from external oscillator failure
• Two-Speed Start-up: Minimize latency between code execution and external oscillator start-up
• Up to 24 I/O Pins and 1 Input-only Pin:
• High current sink/source for LED drivers
• Individually programmable interrupt-onchange pins
• Individually programmable weak pull-ups
• Individual input level selection
• Slew rate control on selected output pins
• Open drain outputs on selected output pins
• Power-Saving Sleep mode
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR) with Selectable Trip Point
• Extended Watchdog Timer (WDT)
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debug (ICD)
• Enhanced Low-Voltage Programming (LVP)
• Operating Voltage Range:
• 1.8V to 3.6V (PIC16LF1782/1783)
• 2.3V to 5.5V (PIC16F1782/1783)
