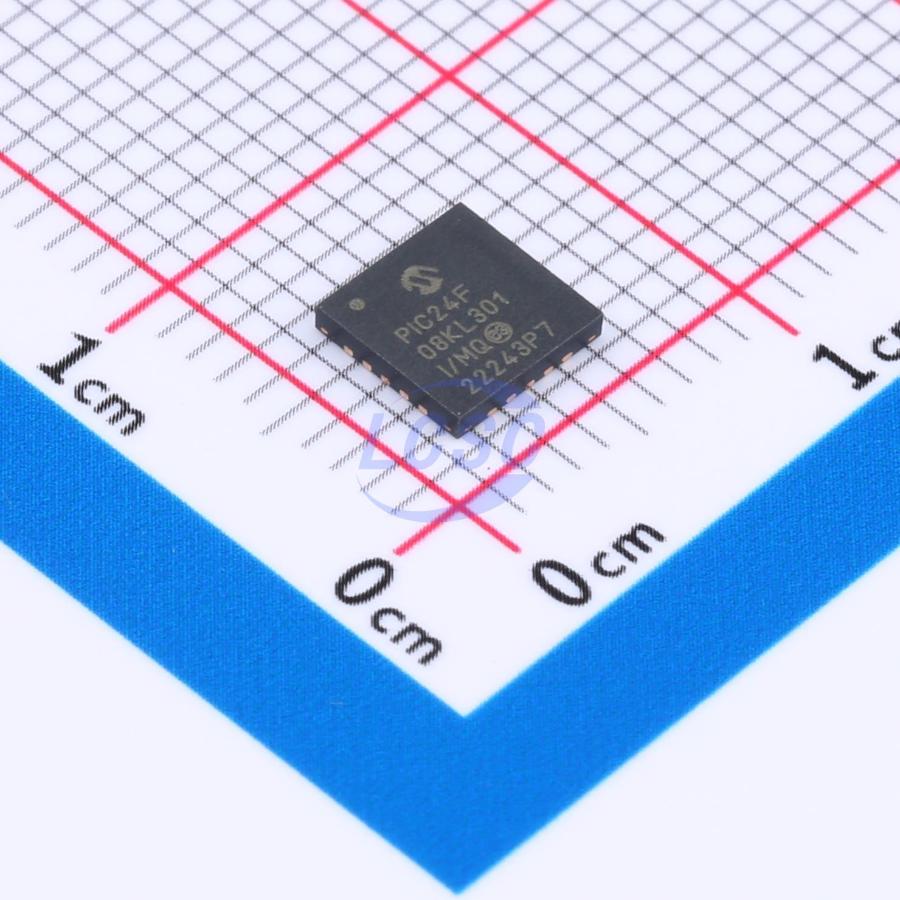

PIC24F08KL301-I/MQ

Key features

• Power Management Modes:
• Run – CPU, Flash, SRAM and Peripherals On
• Doze – CPU Clock Runs Slower than Peripherals
• Idle – CPU Off, SRAM and Peripherals On
• Sleep – CPU, Flash and Peripherals Off and SRAM On
• Low-Power Consumption:
• Run mode currents of 150 μA/MHz typical at 1.8V
• Idle mode currents under 80 μA/MHz at 1.8V
• Sleep mode currents as low as 30 nA at +25℃
• Watchdog Timer as low as 210 nA at +25℃
• High-Performance CPU:
• Modified Harvard Architecture
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Internal Oscillator:
• 4x PLL option
• Multiple divide options
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture (ISA):
• 76 base instructions
• Flexible addressing modes
• Linear Program Memory Addressing
• Linear Data Memory Addressing
• Two Address Generation Units (AGU) for Separate Read and Write Addressing of Data Memory
• Peripheral Features:
• High-Current Sink/Source (18 mA/18 mA) on All I/O Pins
• Configurable Open-Drain Outputs on Digital I/O Pins
• Up to Three External Interrupt Sources
• Two 16-Bit Timer/Counters with Selectable Clock Sources
• Up to Two 8-Bit Timers/Counters with Programmable Prescalers
• Two Capture/Compare/PWM (CCP) modules:
• Modules automatically configure and drive I/O
• 16-bit Capture with max. resolution 40 ns
• 16-bit Compare with max. resolution 83.3 ns
• 1-bit to 10-bit PWM resolution
• Up to One Enhanced CCP module:
• Backward compatible with CCP
• One, two or four PWM outputs
• Programmable dead time
• Auto-shutdown on external event
• Up to Two Master Synchronous Serial Port modules (MSSPs) with Two Modes of Operation:
• Three-wire SPI (all four modes)
• I²C Master, Multi-Master and Slave modes and 7-Bit/10-Bit Addressing
• Up to Two UART modules:
• Supports RS-485, RS-232 and LIN/J2602
• On-chip hardware encoder/decoder for IrDA
• Auto-wake-up on Start bit
• Auto-Baud Detect (ABD)
• Two-byte transmit and receive FIFO buffers
• Analog Features:
• 10-Bit, Up to 12-Channel Analog-to-Digital (A/D) Converter:
• 500 ksps conversion rate
• Conversion available during Sleep and Idle
• Dual Rail-to-Rail Analog Comparators with Programmable Input/Output Configuration
• On-Chip Voltage Reference
• Special Microcontroller Features:
• Operating Voltage Range of 1.8V to 3.6V
• 10,000 Erase/Write Cycle Endurance Flash Program Memory, Typical
• 100,000 Erase/Write Cycle Endurance Data EEPROM, Typical
• Flash and Data EEPROM Data Retention: 40 Years Minimum
• Self-Programmable under Software Control
• Programmable Reference Clock Output
• Fail-Safe Clock Monitor (FSCM) Operation:
• Detects clock failure and switches to on-chip, Low-Power RC (LPRC) Oscillator
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Flexible Watchdog Timer (WDT):
• Uses its own Low-Power RC Oscillator
• Windowed operating modes
• Programmable period of 2 ms to 131s
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via Two Pins
• Programmable High/Low-Voltage Detect (HLVD)
• Programmable Brown-out Reset (BOR):
• Configurable for software controlled operation and shutdown in Sleep mode
• Selectable trip points (1.8V, 2.7V and 3.0V)
• Low-power 2.0V POR re-arm
