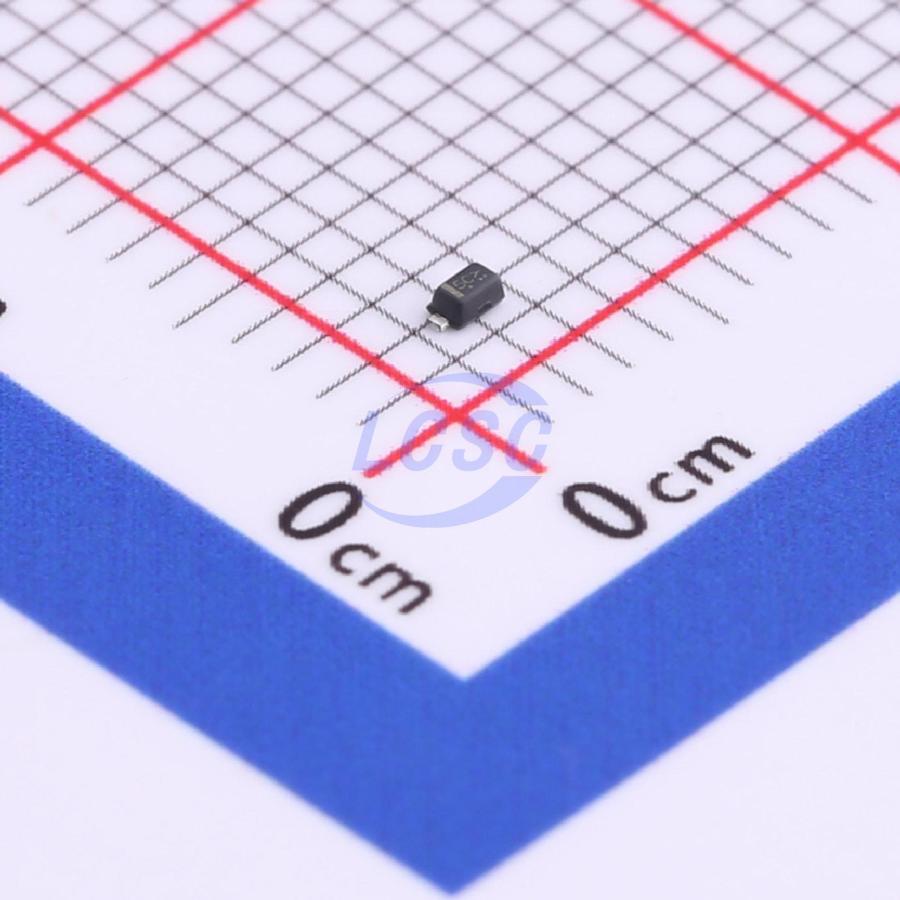

PJSD05CTS-TP
10VC Clamp 9A@8/20us Ipp SOD-523
SOD-523RoHSActive
5VWM 10VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PJSD05CTS-TP
- Store part #
- C2835453
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C2835453
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.31 | ₹66.20 |
| 200+ | ₹2.61 | ₹522.00 |
| 600+ | ₹2.22 | ₹1,332.00 |
| 3,000+ | ₹1.77 | ₹5,310.00 |
| 9,000+ | ₹1.57 | ₹14,130.00 |
| 21,000+ | ₹1.47 | ₹30,870.00 |
20 × ₹3.31
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJSD05CTS-TP
₹66.20 for 20 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.024 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Low operating voltage: ±5V
- Ultra low capacitance: 15pF typical
- Ultra low leakage: nA level
- Low clamping voitage
- 2-pin leadless package
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - IEC61000-4-5 (Lightning) 9A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically <1 ns
