TECH PUBLICDatasheet (PDF)

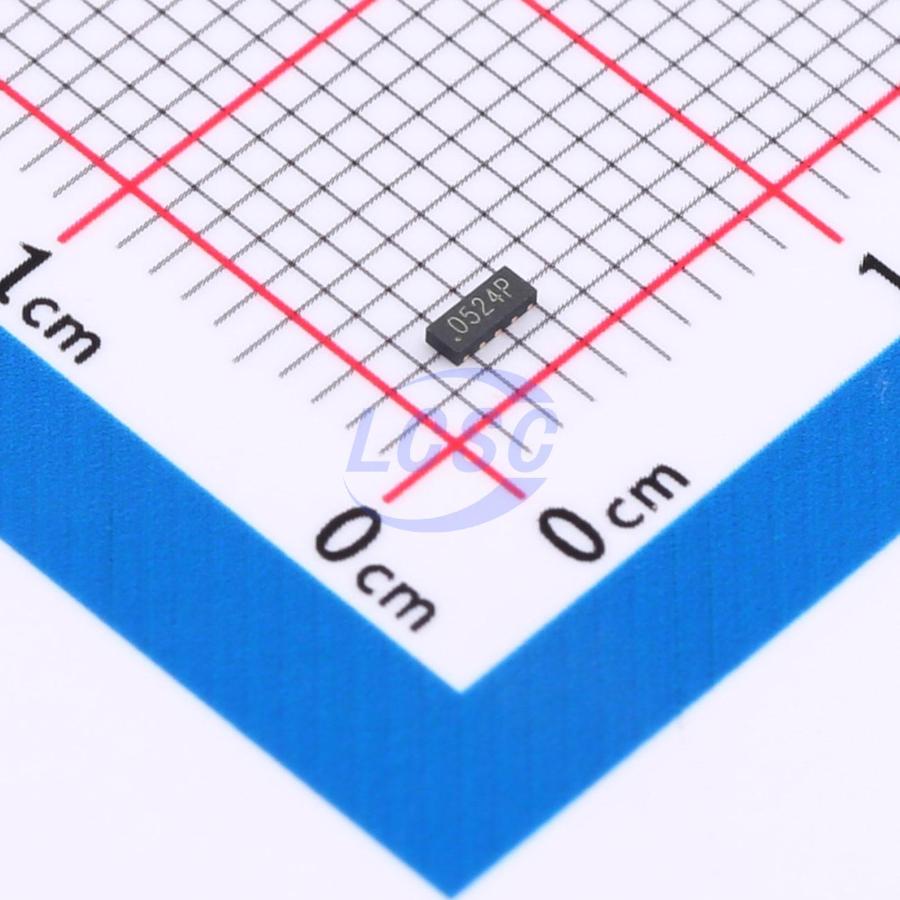

PLR0524-T7
16VC Clamp 4A@8/20us Ipp DFN2510-10
DFN2510-10RoHSActive
5VWM 16VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PLR0524-T7
- Store part #
- C28646368
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C28646368
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.87 | ₹48.70 |
| 100+ | ₹3.82 | ₹382.00 |
| 300+ | ₹3.29 | ₹987.00 |
| 1,000+ | ₹2.90 | ₹2,900.00 |
| 5,000+ | ₹2.58 | ₹12,900.00 |
| 10,000+ | ₹2.42 | ₹24,200.00 |
10 × ₹4.87
₹48.70
excl. GST
₹57.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PLR0524-T7
₹48.70 for 10 + GST
Specifications
- Clamping Voltage
- 16V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Voltage - Breakdown
- 9.5V
- Number of Channels
- Four channels
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3pF typical (/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning): 4A(8/20us)
- ROHS Compliant
