STDatasheet (PDF)

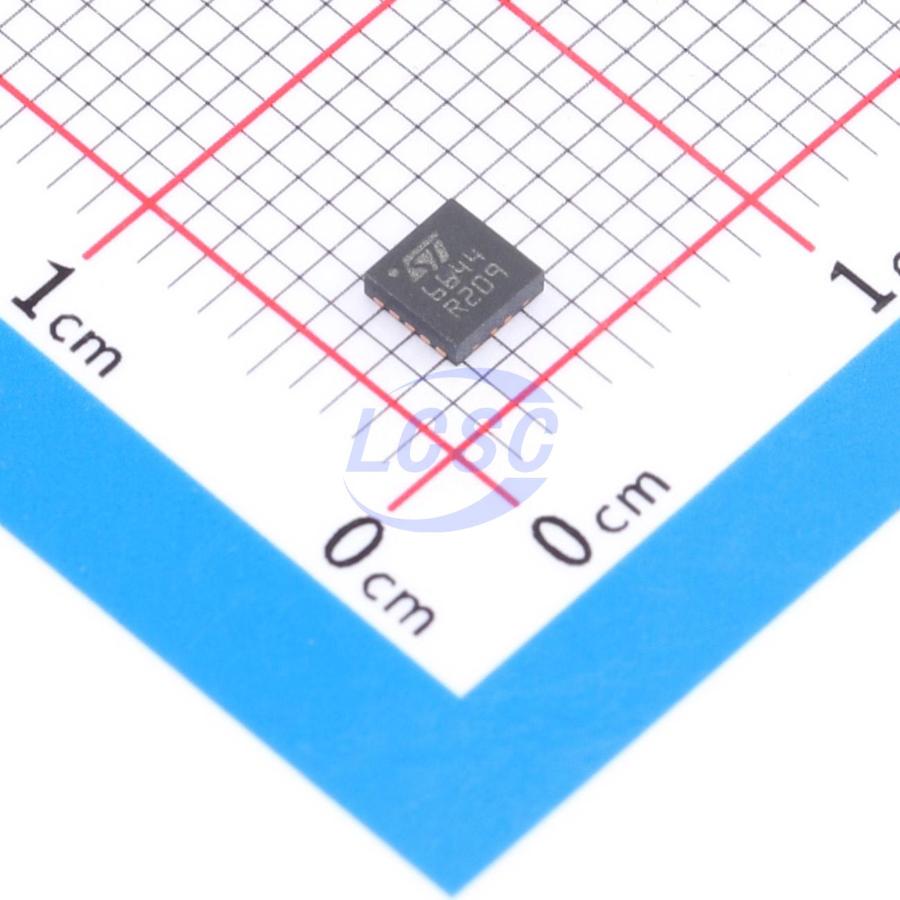

PM6644TR
200kHz~600kHz Step-down type Adjustable 900mV~8V 350mA DFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-10-EP(3x3)ROHS3 CompliantActive
350 mA Adjustable Step-Down Regulator
- Manufacturer
- ST
- Manufacturer part #
- PM6644TR
- Store part #
- C1852792
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C1852792
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹767.34 | ₹767.34 |
| 10+ | ₹657.07 | ₹6,570.70 |
| 30+ | ₹591.61 | ₹17,748.30 |
| 100+ | ₹525.27 | ₹52,527.00 |
| 500+ | ₹494.59 | ₹2,47,295.00 |
| 1,000+ | ₹480.90 | ₹4,80,900.00 |
1 × ₹767.34
₹767.34
excl. GST
₹905.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PM6644TR
₹767.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 200kHz~600kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Protection latch;Output discharge;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~25V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 900mV~8V
- Output Current
- 350mA
- Quiescent Current
- 26uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.055 g
Overview
The PM6644 is a 350 mA valley current limit stepdown regulator capable of delivering an adjustable output voltage in the range between 0.9 V and 8 V. A fixed value of output voltage is also available (3.47V), saving the external resistor divider. It is housed in a small DFN10 3x3 package. The switching regulator is based on COT (constant-on-time) architecture, that assures fast load transient response; the embedded voltage feed-forward provides nearly constant switching frequency operation. The pulse skipping technique increases efficiency at very light load. The switching frequency can be adjusted from 200 kHz to 600 kHz through a simple resistor.
Applications
- Networking power supply
- Portable applications
- Microcontroller supply
- Industrial supply
Key features
- 4.5 V to 25 V input voltage range
- Output voltage VOUT: fixed 3.47 V or adjustable 0.9 V to 8 V
- 350 mA valley current limit
- Constant-on-time control
- Programmable switching frequency
- Pulse skipping mode (skip mode) at light loads
- Independent EN signals
- Latched OVP and UVP
