JSMSEMIDatasheet (PDF)

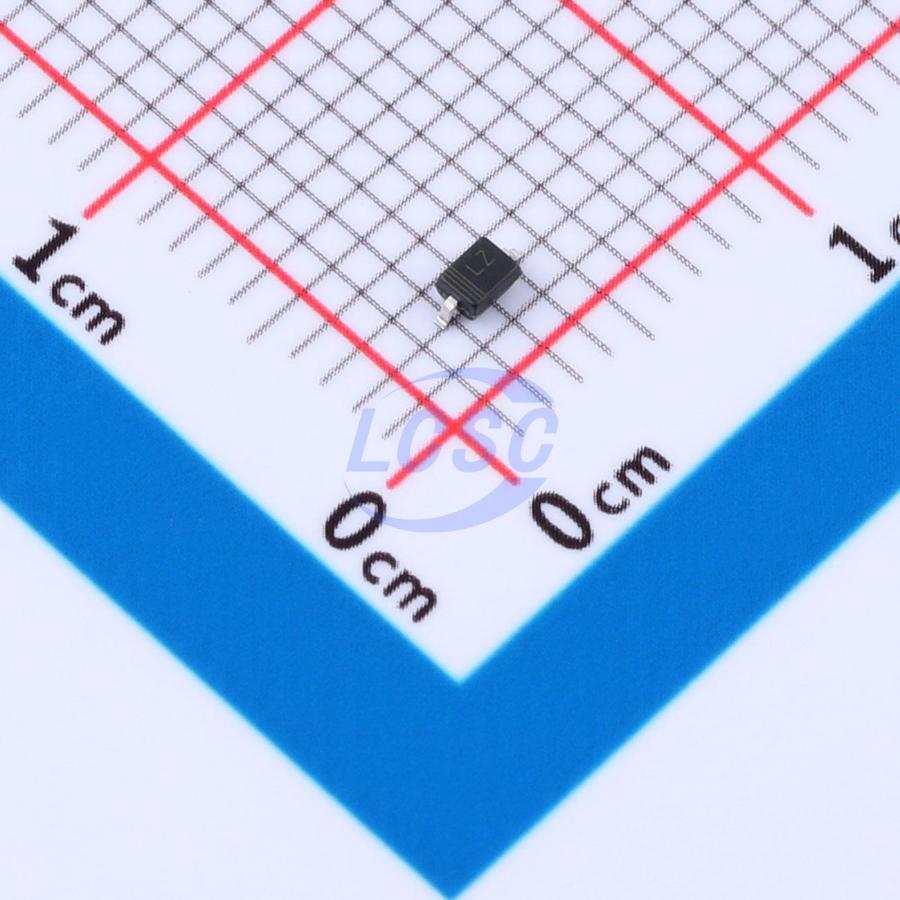

PMEG1020EA,115-JSM
10V 1 Independent 2A SOD-323 Single Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMEG1020EA,115-JSM
- Store part #
- C53114111
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,035 in stock
#C53114111
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.41 | ₹77.05 |
| 50+ | ₹12.36 | ₹618.00 |
| 150+ | ₹10.82 | ₹1,623.00 |
| 500+ | ₹9.67 | ₹4,835.00 |
| 3,000+ | ₹8.51 | ₹25,530.00 |
| 6,000+ | ₹8.04 | ₹48,240.00 |
5 × ₹15.41
₹77.05
excl. GST
₹90.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG1020EA,115-JSM
₹77.05 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 10V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 600mV@1A;900mV@3A
- Reverse Leakage Current (Ir)
- 1mA@40V
- Non-Repetitive Peak Forward Surge Current
- 9A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG2005AEA,115-JSM#C53114226JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,420 | ₹5.19 · 2,420 in stock | View |
 | PMEG2020AEA,115-JSM#C53114115JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,640 | ₹5.86 · 1,640 in stock | View |
 | PMEG3020EJ,115-JSM#C53114155JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 3,850 | ₹9.68 · 3,850 in stock | View |
 | PMEG1030EJ,115-JSM#C53114231JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,660 | ₹6.32 · 1,660 in stock | View |
