NexperiaDatasheet (PDF)

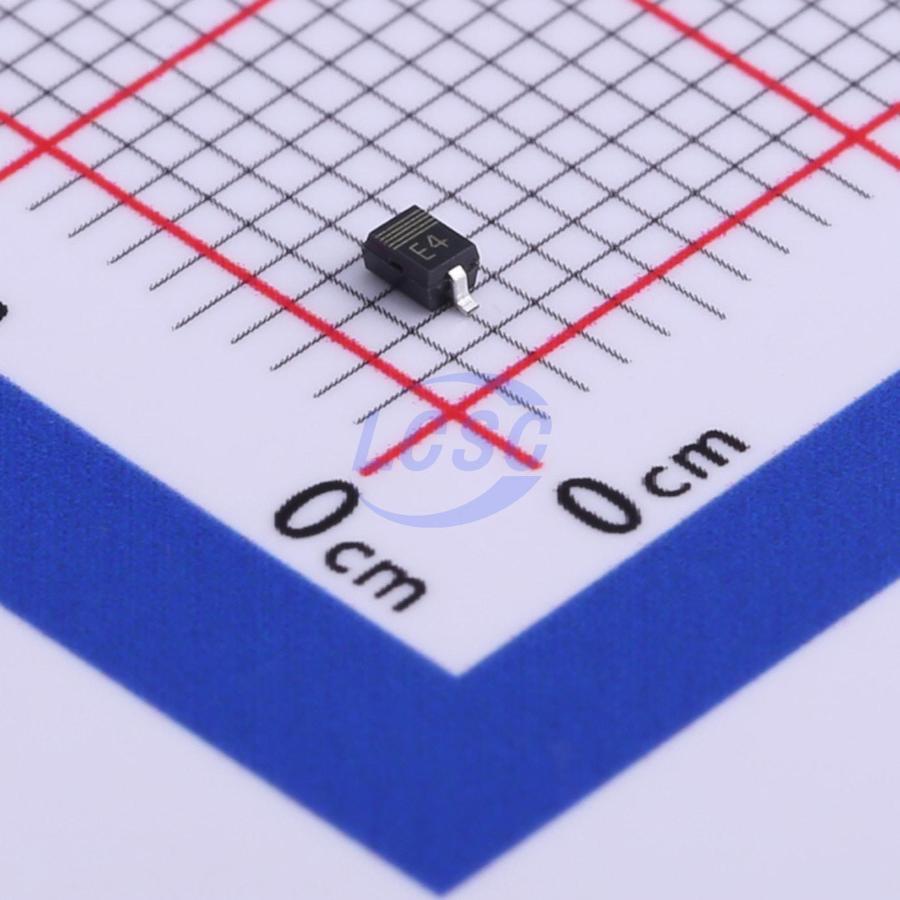

PMEG3005AEA,115
Diode 30V 500mA Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3005AEA,115
- Store part #
- C513110
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
865 in stock
#C513110
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.26 | ₹116.30 |
| 50+ | ₹18.16 | ₹908.00 |
| 150+ | ₹15.98 | ₹2,397.00 |
| 500+ | ₹13.26 | ₹6,630.00 |
| 3,000+ | ₹12.04 | ₹36,120.00 |
| 6,000+ | ₹11.31 | ₹67,860.00 |
5 × ₹23.26
₹116.30
excl. GST
₹137.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3005AEA,115
₹116.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 430mV@500mA
- Reverse Leakage Current (Ir)
- 150uA@30V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD323 (SC- 76) very small SMD plastic package.
Applications
- Low voltage rectification
- High efficiency DC/DC conversion
- Voltage clamping
- Inverse polarity protection
- Low power consumption applications
Key features
- Very low forward voltage
- High surge current
- Very small plastic SMD package
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG3005EJ,115#C552853Nexperia · SOD-323F | Nexperia | SOD-323F | On request | ₹26.04 · 0 in stock | View |
 | PMEG4005AEA,115#C426867Nexperia · SOD-323 | Nexperia | SOD-323 | 5,027 | ₹82.79 · 5,027 in stock | View |
 | CUS10S40,H3F#C5331522TOSHIBA · USC | TOSHIBA | USC | 5,390 | ₹9.74 · 5,390 in stock | View |
 | BAT760#C53100381TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 5,520 | ₹3.15 · 5,520 in stock | View |
 | PMEG4010BEA(TP)#C53100481TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,510 | ₹5.38 · 3,510 in stock | View |
