PMEG3005EJ,115

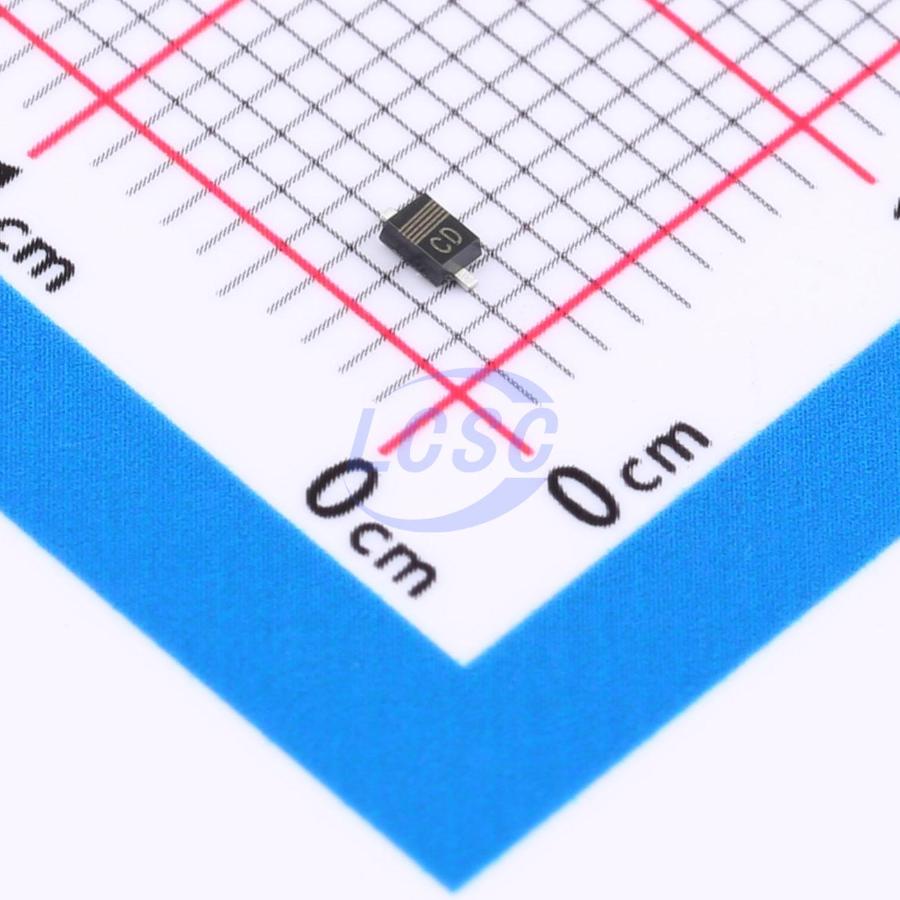

Diode 30V 500mA Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3005EJ,115
- Store part #
- C552853
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C552853
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.04 | ₹130.20 |
| 50+ | ₹20.45 | ₹1,022.50 |
| 150+ | ₹18.06 | ₹2,709.00 |
| 500+ | ₹15.08 | ₹7,540.00 |
| 3,000+ | ₹13.22 | ₹39,660.00 |
| 6,000+ | ₹12.41 | ₹74,460.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 430mV@500mA
- Reverse Leakage Current (Ir)
- 150uA@30V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD323F (SC- 90) Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Key features
- Very low forward voltage
- Flat lead SMD package
Alternatives
Similar parts — check the datasheet before substituting.
