JSMSEMIDatasheet (PDF)

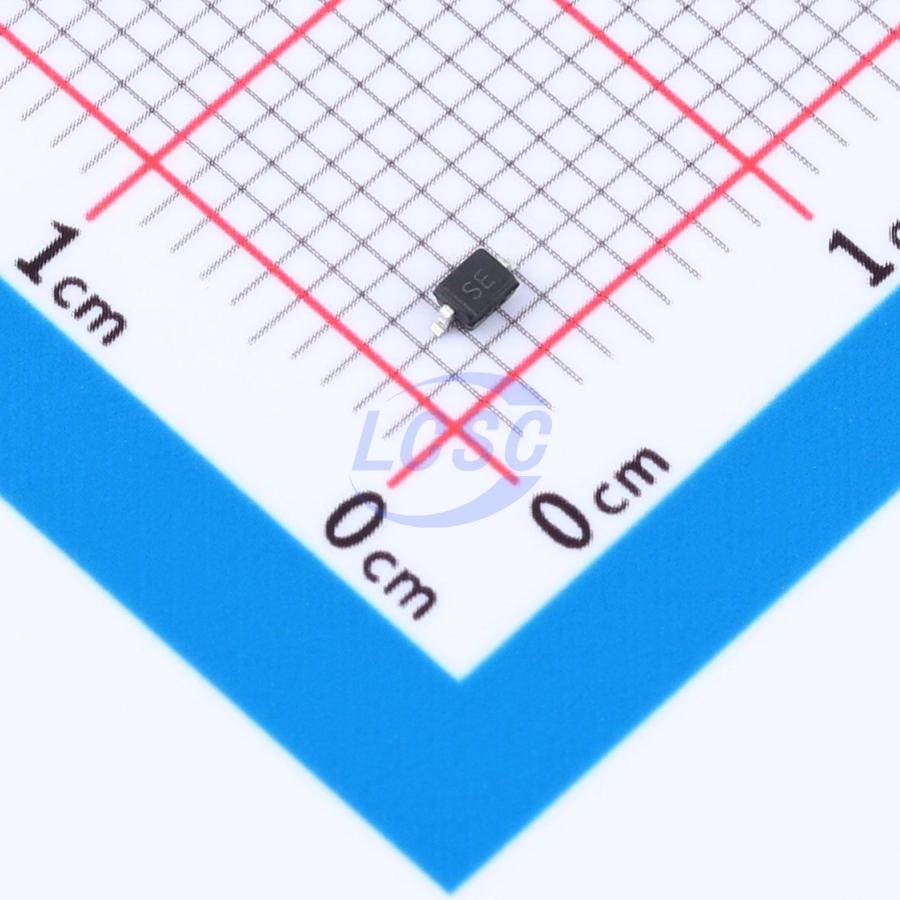

PMEG3005AEA,115-JSM
30V 1 Independent 450mV@500mA 500mA SOD-323 Single Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMEG3005AEA,115-JSM
- Store part #
- C53114233
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C53114233
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.40 | ₹77.00 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.70 | ₹1,605.00 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 3,000+ | ₹8.59 | ₹25,770.00 |
| 6,000+ | ₹8.11 | ₹48,660.00 |
5 × ₹15.40
₹77.00
excl. GST
₹90.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3005AEA,115-JSM
₹77.00 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 450mV@500mA
- Reverse Leakage Current (Ir)
- 75uA
- Current - Rectified
- 500mA
- Non-Repetitive Peak Forward Surge Current
- 22A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Key features
- Low forward voltage drop
- Guard ring structure for transient protection
- High conductance
- Lead-free versions also available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG4005AEA,115-JSM#C53114061JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 16,920 | ₹5.57 · 16,920 in stock | View |
 | PMEG4005EJ,115-JSM#C53114204JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,230 | ₹5.70 · 2,230 in stock | View |
 | PMEG2020AEA,115-JSM#C53114115JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,640 | ₹5.86 · 1,640 in stock | View |
 | PMEG3020EJ,115-JSM#C53114155JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 3,850 | ₹9.68 · 3,850 in stock | View |
 | PMEG2005AEA,115-JSM#C53114226JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,420 | ₹5.19 · 2,420 in stock | View |
