NexperiaDatasheet (PDF)

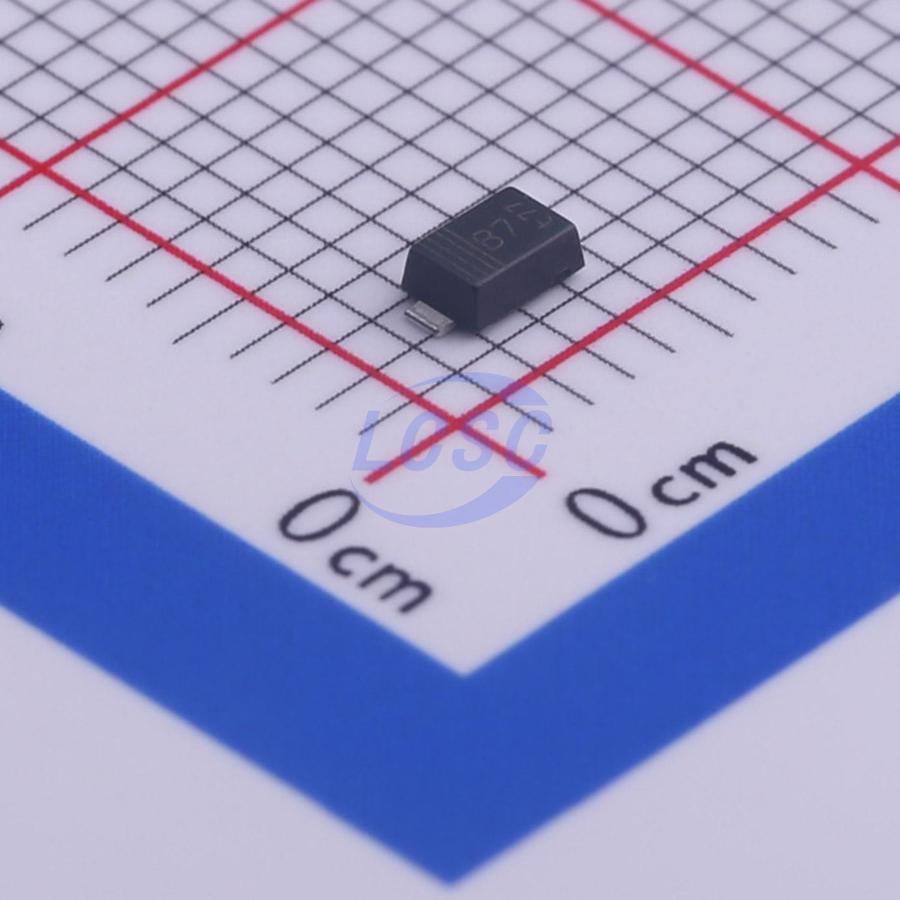

PMEG3010ER,115
Diode 30V 1A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3010ER,115
- Store part #
- C456106
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C456106
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.52 | ₹202.60 |
| 50+ | ₹31.94 | ₹1,597.00 |
| 150+ | ₹28.26 | ₹4,239.00 |
| 500+ | ₹23.67 | ₹11,835.00 |
| 3,000+ | ₹21.62 | ₹64,860.00 |
| 6,000+ | ₹20.39 | ₹1,22,340.00 |
5 × ₹40.52
₹202.60
excl. GST
₹239.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3010ER,115
₹202.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 360mV@1A
- Reverse Leakage Current (Ir)
- 1.5mA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG3020ER,115#C552879Nexperia · SOD-123W | Nexperia | SOD-123W | 2,075 | ₹51.49 · 2,075 in stock | View |
 | PMEG3020ER-QX#C5846102Nexperia · SOD-123W | Nexperia | SOD-123W | 115 | ₹87.65 · 115 in stock | View |
 | CRS01(TE85L,Q,M)#C146292TOSHIBA · SOD-123F | TOSHIBA | SOD-123F | 1,185 | ₹24.03 · 1,185 in stock | View |
 | CRS11(TE85L,Q,M)#C150152TOSHIBA · SOD-123F | TOSHIBA | SOD-123F | 650 | ₹37.80 · 650 in stock | View |
 | CDBM240L-HF#C3012684Comchip · SOD-123 | Comchip | SOD-123 | 1,000 | ₹44.81 · 1,000 in stock | View |
