NexperiaDatasheet (PDF)

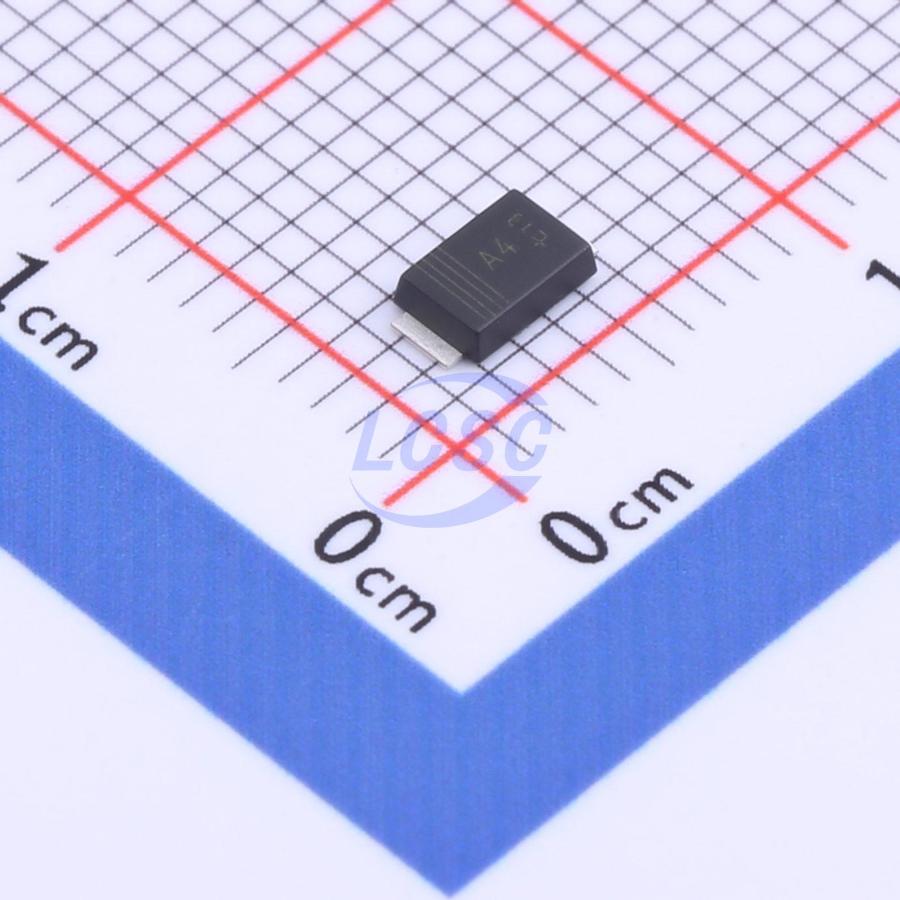

PMEG3020BEP,115
Diode 30V 2A Surface Mount SOD-128
SOD-128ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3020BEP,115
- Store part #
- C552869
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,730 in stock
#C552869
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.70 | ₹51.70 |
| 10+ | ₹40.40 | ₹404.00 |
| 30+ | ₹35.63 | ₹1,068.90 |
| 100+ | ₹29.77 | ₹2,977.00 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 1,000+ | ₹25.41 | ₹25,410.00 |
1 × ₹51.70
₹51.70
excl. GST
₹61.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3020BEP,115
₹51.70 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@2A
- Reverse Leakage Current (Ir)
- 100uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.392 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
Key features
- Average forward current: IF(AV) ≤ 2 A
- Reverse voltage: VR ≤ 30 V
- Low forward voltage
- High power capability due to clip-bond technology
- Small and flat lead SMD plastic package
- Suitable for both reflow and wave soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMS03-TP#C48639059TECH PUBLIC · SOD-128 | TECH PUBLIC | SOD-128 | 2,740 | ₹38.67 · 2,740 in stock | View |
 | PMEG4020EP,115#C456125Nexperia · SOD-128 | Nexperia | SOD-128 | 492 | ₹57.10 · 492 in stock | View |
 | PMEG4020EP-QX#C6148259Nexperia · SOD-128 | Nexperia | SOD-128 | 6 | ₹107.55 · 6 in stock | View |
 | PMEG3030BEP-QX#C7029112Nexperia · SOD-128 | Nexperia | SOD-128 | 100 | ₹141.40 · 100 in stock | View |
 | PMEG4020EP-TP#C48639053TECH PUBLIC · SOD-128 | TECH PUBLIC | SOD-128 | 1,690 | ₹15.19 · 1,690 in stock | View |
