NexperiaDatasheet (PDF)

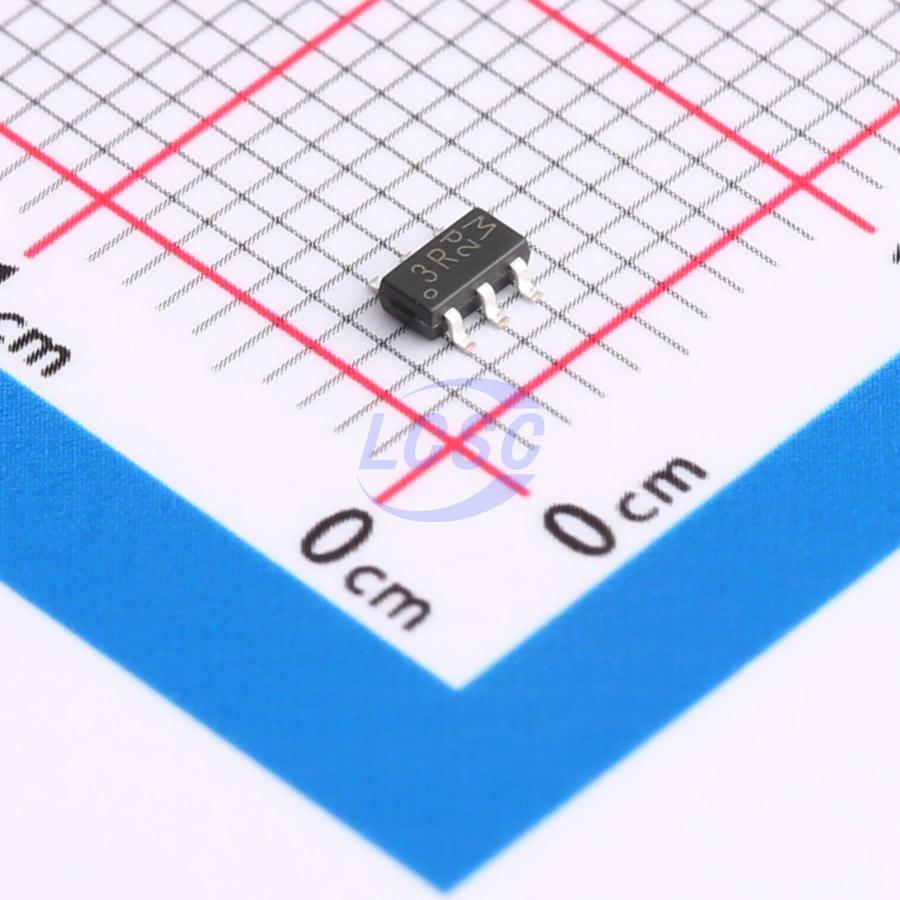

PMN100EPAX
P-Channel 60V 2.5A 7.5W Surface Mount SC-74(TSOP-6)
SC-74(TSOP-6)ROHS3 CompliantActive
MOSFET P-CH 60V 2.5A SC-74(TSOP-6)
- Manufacturer
- Nexperia
- Manufacturer part #
- PMN100EPAX
- Store part #
- C3281938
- Package / case
- SC-74(TSOP-6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,273 in stock
#C3281938
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.04 | ₹104.04 |
| 10+ | ₹83.40 | ₹834.00 |
| 30+ | ₹72.98 | ₹2,189.40 |
| 100+ | ₹62.78 | ₹6,278.00 |
| 500+ | ₹56.69 | ₹28,345.00 |
| 1,000+ | ₹53.65 | ₹53,650.00 |
1 × ₹104.04
₹104.04
excl. GST
₹122.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMN100EPAX
₹104.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 2.5A
- Ciss-Input Capacitance
- 616pF
- Pd - Power Dissipation
- 7.5W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 130mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT457 (SC-74) Surface Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- High-side load switch
- Switching circuits
Key features
- Logic-level compatible
- Extended temperature range Tj = 175 °C
- Very fast switching
- Trench MOSFET technology
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM603PS6#C2959861TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,035 | ₹20.47 · 3,035 in stock | View |
 | STT2PF60L#C2959863TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 860 | ₹24.61 · 860 in stock | View |
 | ZXMP6A17E6TA#C2959859TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,535 | ₹23.95 · 3,535 in stock | View |
 | SI3459BDV#C2987067TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 4,190 | ₹30.06 · 4,190 in stock | View |
 | ZXMP6A17E6TA#C140565DIODES · SOT-26 | DIODES | SOT-26 | 5,350 | ₹54.45 · 5,350 in stock | View |
