NexperiaDatasheet (PDF)

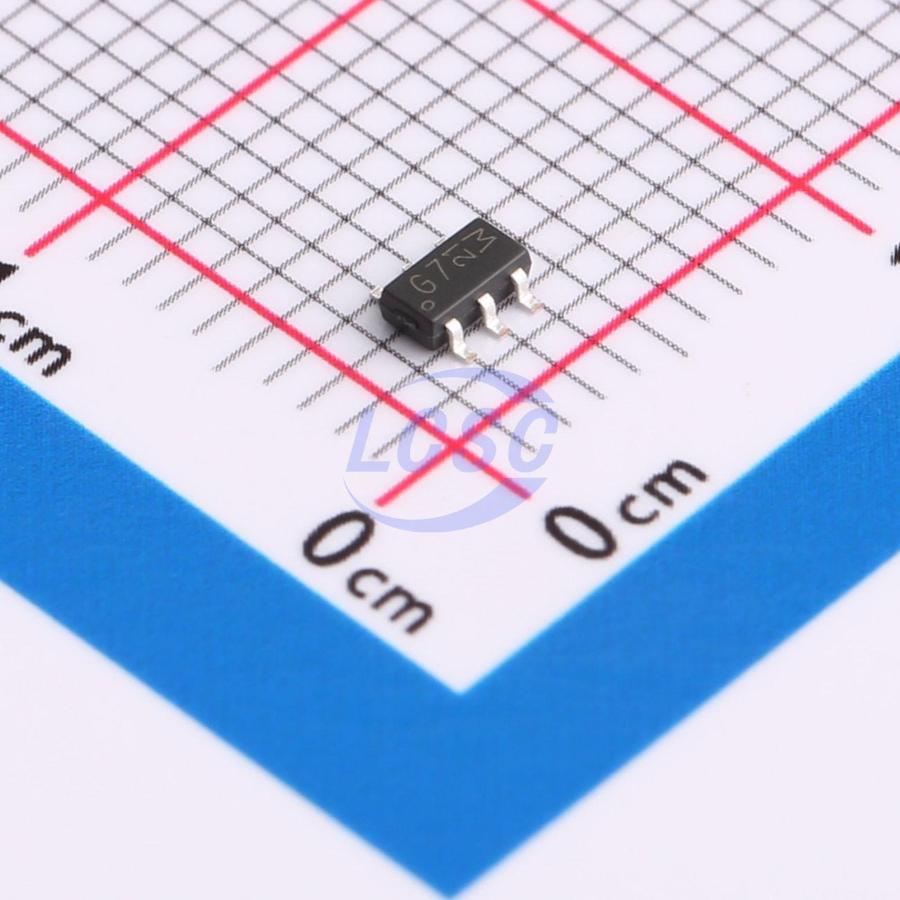

PMN16XNEX
N-Channel 20V 9.1A 1400mW Surface Mount SOT-457
SOT-457ROHS3 CompliantActive
MOSFET N-CH 20V 9.1A SOT-457
- Manufacturer
- Nexperia
- Manufacturer part #
- PMN16XNEX
- Store part #
- C552966
- Package / case
- SOT-457
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C552966
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.81 | ₹129.05 |
| 50+ | ₹25.16 | ₹1,258.00 |
| 150+ | ₹24.73 | ₹3,709.50 |
| 500+ | ₹24.29 | ₹12,145.00 |
5 × ₹25.81
₹129.05
excl. GST
₹152.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMN16XNEX
₹129.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 9.1A
- Ciss-Input Capacitance
- 1.136nF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 112pF
- RDS(on)
- 15mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 650mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT457 (SC-74) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- LED driver
- Power management
- Low-side loadswitch
- Switching circuits
Key features
- Trench MOSFET technology
- Low threshold voltage
- Very fast switching
- Enhanced power dissipation capability of 1400 mW
- ElectroStatic Discharge (ESD) protection > 1 kV HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC637AN#C5123941TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 860 | ₹19.82 · 860 in stock | View |
 | SSM6K818R,LF#C20247101TOSHIBA · TSOP-6 | TOSHIBA | TSOP-6 | 93 | ₹84.62 · 93 in stock | View |
 | YJJ09N03A#C919559YANGJIE · SOT-23-6L | YANGJIE | SOT-23-6L | 450 | ₹21.39 · 450 in stock | View |
 | IRLTS6342TRPBF#C152628Infineon · TSOP-6 | Infineon | TSOP-6 | 2,920 | ₹51.20 · 2,920 in stock | View |
 | AP6N03LI#C3011262A Power microelectronics · SOT-23-6L | A Power microelectronics | SOT-23-6L | On request | ₹7.78 · 0 in stock | View |
