NexperiaDatasheet (PDF)

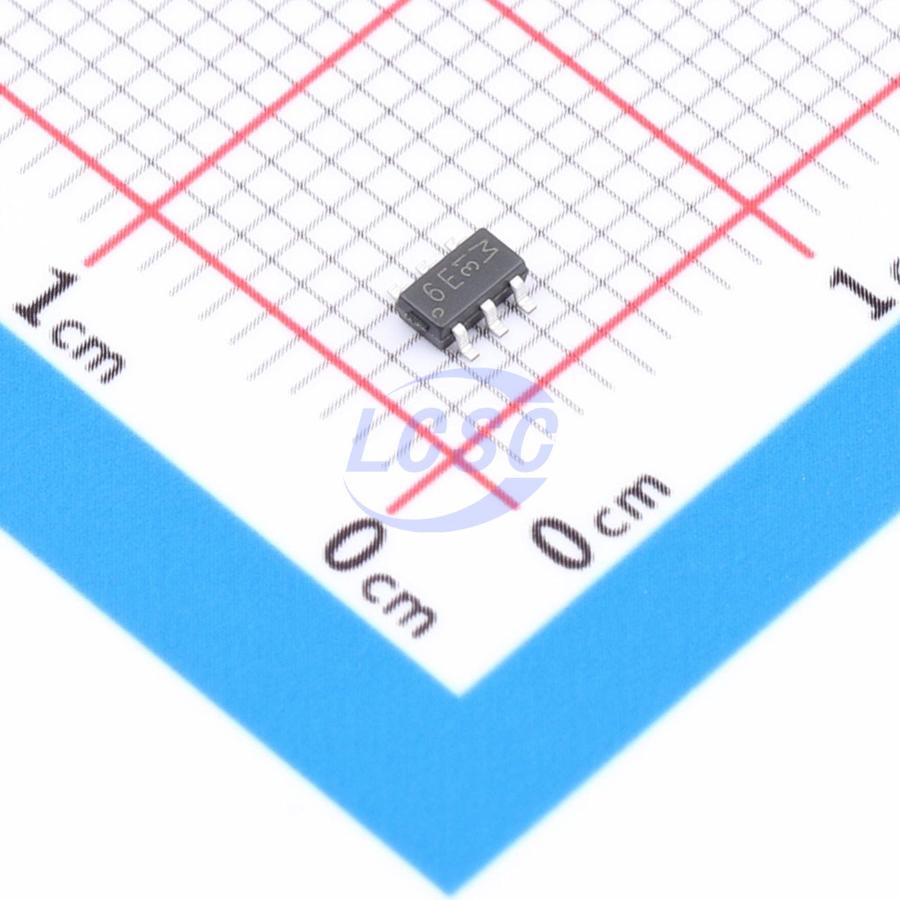

PMN48XPA2X
20V 4.4A 1.7W 55mΩ@4.5V 1 P-Channel P-Channel TSOP-6 Single FETs, MOSFETs RoHS
TSOP-6ROHS3 CompliantActive
P-channel, Current: 4.4A, Voltage: 20V
- Manufacturer
- Nexperia
- Manufacturer part #
- PMN48XPA2X
- Store part #
- C3281939
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
438 in stock
#C3281939
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.45 | ₹91.45 |
| 10+ | ₹73.20 | ₹732.00 |
| 30+ | ₹64.07 | ₹1,922.10 |
| 100+ | ₹55.17 | ₹5,517.00 |
| 500+ | ₹49.74 | ₹24,870.00 |
| 1,000+ | ₹47.14 | ₹47,140.00 |
1 × ₹91.45
₹91.45
excl. GST
₹107.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMN48XPA2X
₹91.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 87pF
- Current - Continuous Drain(Id)
- 4.4A
- Ciss-Input Capacitance
- 679pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 55mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.005 g
Overview
P-channel enhancement mode FET using trench MOSFET technology, housed in a small SOT457 (SC-74) SMD plastic package.
Applications
- Relay driver - High-speed line driver - High-side load switch - Switching circuit
Key features
- Low threshold voltage
- Extended temperature range Tj = 175℃
- Ultra-fast switching speed
- Trench MOSFET technology
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3050LVT-7#C397951DIODES · TSOT-26 | DIODES | TSOT-26 | 2,305 | ₹27.43 · 2,305 in stock | View |
 | KO6401-HF#C489386KEXIN · SOT-23-6 | KEXIN | SOT-23-6 | 2,510 | ₹7.22 · 2,510 in stock | View |
 | CPH6341-TL-W#C890562onsemi · SOT-26-6 | onsemi | SOT-26-6 | 158 | ₹77.58 · 158 in stock | View |
 | AO6401A#C102604AOS · TSOP-6 | AOS | TSOP-6 | 195 | ₹35.01 · 195 in stock | View |
 | AM3407PE-VB#C878862VBsemi Elec · SOT-23-6 | VBsemi Elec | SOT-23-6 | 20 | ₹35.84 · 20 in stock | View |
