NexperiaDatasheet (PDF)

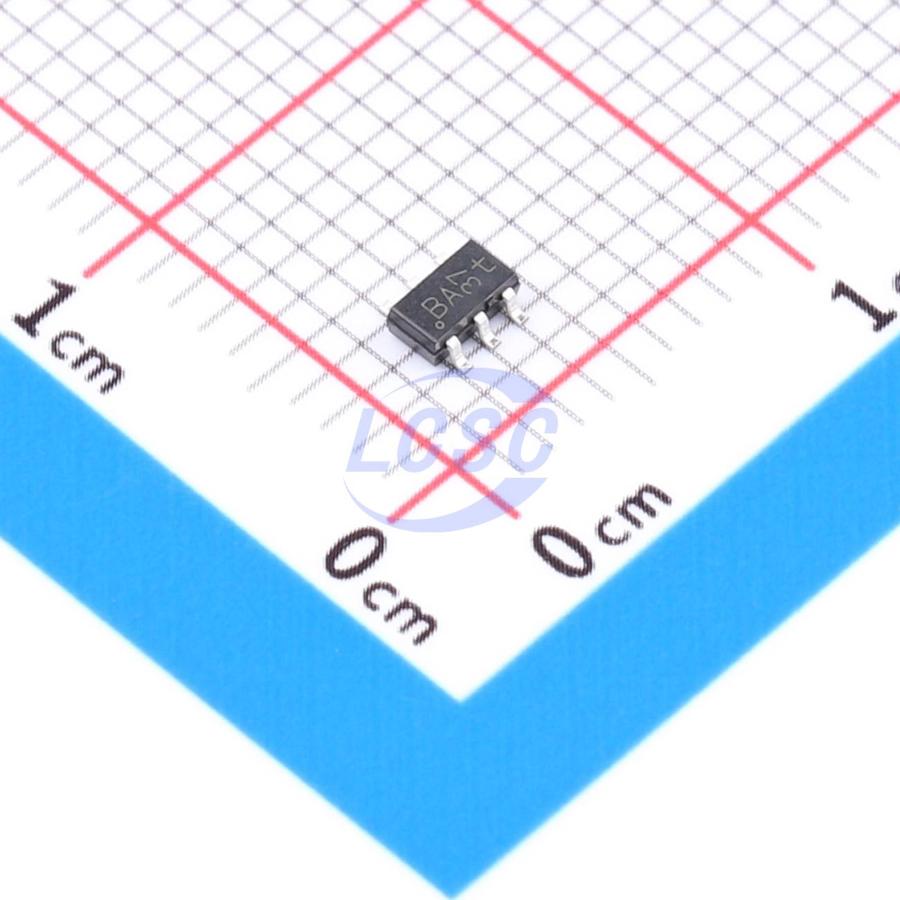

PMN48XPAX
20V 4.1A 55mΩ@4.5V 1 P-Channel P-Channel SOT-457 Single FETs, MOSFETs RoHS
SOT-457ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMN48XPAX
- Store part #
- C552988
- Package / case
- SOT-457
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C552988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.16 | ₹82.16 |
| 10+ | ₹80.20 | ₹802.00 |
| 30+ | ₹78.90 | ₹2,367.00 |
| 100+ | ₹77.59 | ₹7,759.00 |
1 × ₹82.16
₹82.16
excl. GST
₹96.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMN48XPAX
₹82.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 530mW;6.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 55mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.25V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.074 g
Overview
P-channel enhancement mode FET using trench MOSFET technology, housed in a small SOT457 (SC-74) SMD plastic package.
Applications
- Relay driver
- High-speed line driver
- High-side load switch
- Switching circuit
Key features
- Logic level compatible
- Trench MOSFET technology
- Ultra-fast switching speed
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMN48XP,115#C552986Nexperia · TSOP-6 | Nexperia | TSOP-6 | 3,000 | ₹42.01 · 3,000 in stock | View |
 | PMN48XP,125#C552987Nexperia · SOT-457 | Nexperia | SOT-457 | 23,970 | ₹29.66 · 23,970 in stock | View |
 | SQ3419AEEV-T1_GE3#C727535VISHAY · TSOP-6 | VISHAY | TSOP-6 | 5 | ₹85.32 · 5 in stock | View |
 | FH365P#C5159046XIN FEI HONG · SOT-23-6 | XIN FEI HONG | SOT-23-6 | 605 | ₹9.47 · 605 in stock | View |
 | YJS2305A#C2942371YANGJIE · SOT-23-6L | YANGJIE | SOT-23-6L | 3,300 | ₹11.97 · 3,300 in stock | View |
