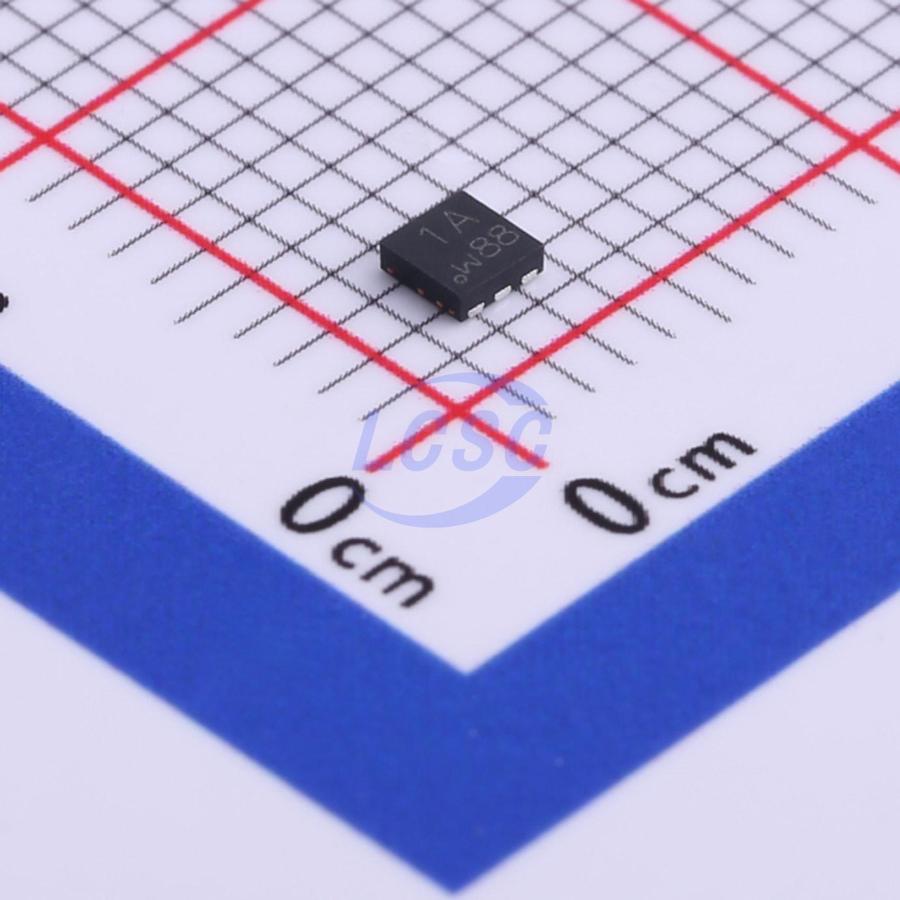

PMPB15XP,115
P-Channel 12V 11.8A 1.7W Surface Mount DFN2020MD-6
DFN2020MD-6ROHS3 CompliantActive
MOSFET P-CH 12V 11.8A DFN2020MD-6
- Manufacturer
- Nexperia
- Manufacturer part #
- PMPB15XP,115
- Store part #
- C513107
- Package / case
- DFN2020MD-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,985 in stock
#C513107
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.62 | ₹178.10 |
| 50+ | ₹27.47 | ₹1,373.50 |
| 150+ | ₹23.96 | ₹3,594.00 |
| 500+ | ₹19.61 | ₹9,805.00 |
| 3,000+ | ₹17.66 | ₹52,980.00 |
| 6,000+ | ₹16.50 | ₹99,000.00 |
5 × ₹35.62
₹178.10
excl. GST
₹210.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMPB15XP,115
₹178.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 570pF
- Ciss-Input Capacitance
- 2.875nF
- Pd - Power Dissipation
- 1.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 11.8A
- Reverse Transfer Capacitance (Crss)
- 530pF
- RDS(on)
- 19mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 100nC@6V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Charging switch for portable devices
- DC-to-DC converters
- Power management in battery-driven portable devices
- Hard disk and computing power management
Key features
- 1.5 kV ESD protection (human body model)
- Trench MOSFET technology
- Small and leadless ultra thin SMD plastic package: 2×2×0.65 mm
- Exposed drain pad for excellent thermal conduction
- Tin-plated 100 % solderable side pads for optical solder inspection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMPB15XP#C294617Nexperia · DFN-6-EP(2x2) | Nexperia | DFN-6-EP(2x2) | 4 | ₹38.90 · 4 in stock | View |
| HSCB1214#C28314514HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 780 | ₹6.48 · 780 in stock | View | |
 | HSCB1216#C845601HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 6,620 | ₹12.63 · 6,620 in stock | View |
 | XR1216M#C42456888XNRUSEMI · DFN2020-6L | XNRUSEMI | DFN2020-6L | 1,880 | ₹11.80 · 1,880 in stock | View |
 | PJM16P12DF#C22470328PJSEMI · DFN2x2A-6L | PJSEMI | DFN2x2A-6L | 320 | ₹14.45 · 320 in stock | View |
