VBsemi ElecDatasheet (PDF)

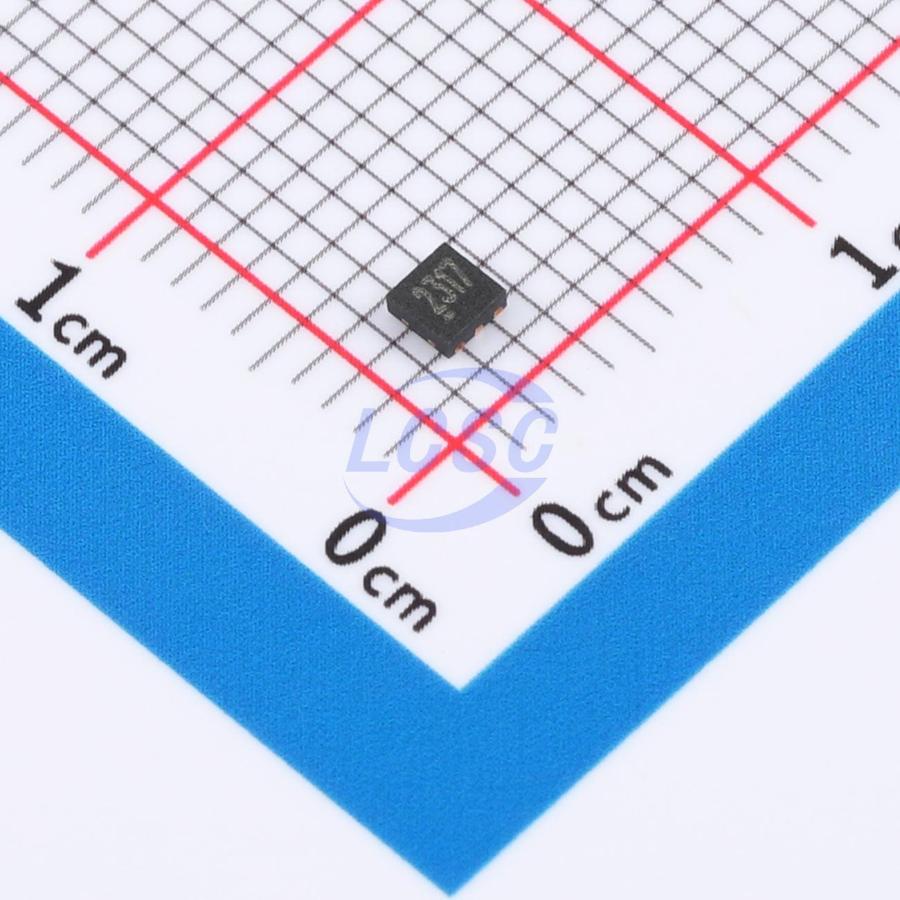

PMPB16EPX-VB
17W 30V 10A 22mΩ@4.5V 1 P-Channel P-Channel DFN-6(2x2) Single FETs, MOSFETs
DFN-6(2x2)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PMPB16EPX-VB
- Store part #
- C52148641
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C52148641
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.04 | ₹89.04 |
| 10+ | ₹72.28 | ₹722.80 |
| 30+ | ₹64.01 | ₹1,920.30 |
| 100+ | ₹55.74 | ₹5,574.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹89.04
₹89.04
excl. GST
₹105.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMPB16EPX-VB
₹89.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 17W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 18nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench power MOSFET
- Thermally enhanced DFN2X2 package
- Small package footprint
- Low on-resistance
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMA905P_F130-VB#C52109959VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹95.14 · 10 in stock | View |
 | PMPB15XPAX-VB#C52148643VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
 | PMPB09R5VPX-VB#C52148759VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
 | PMPB13UPX-VB#C52148761VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
 | PMPB24EPX-VB#C52148762VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
