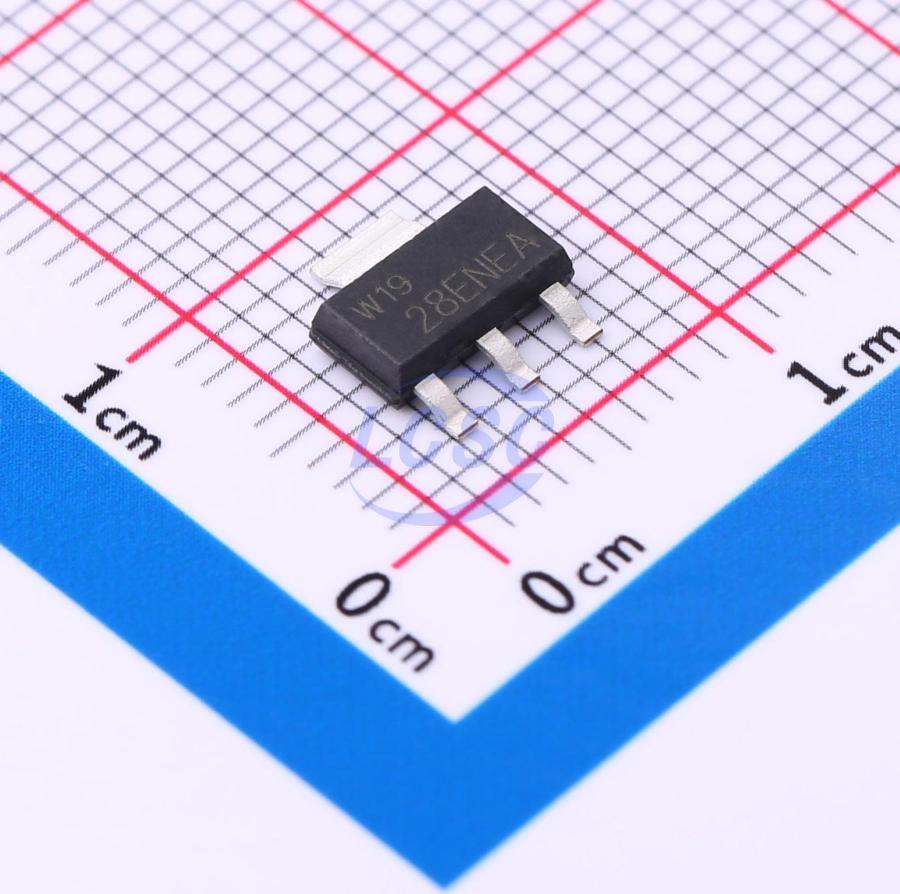

PMT280ENEAX
N-Channel 100V 1.5A 1.92W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 100V 1.5A SOT-223
- Manufacturer
- Nexperia
- Manufacturer part #
- PMT280ENEAX
- Store part #
- C553077
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C553077
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.78 | ₹61.78 |
| 10+ | ₹48.51 | ₹485.10 |
| 30+ | ₹42.87 | ₹1,286.10 |
| 100+ | ₹35.89 | ₹3,589.00 |
| 500+ | ₹31.33 | ₹15,665.00 |
| 1,000+ | ₹29.37 | ₹29,370.00 |
1 × ₹61.78
₹61.78
excl. GST
₹72.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
PMT280ENEAX
₹61.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 13pF
- Ciss-Input Capacitance
- 195pF
- Pd - Power Dissipation
- 1.92W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 1.5A
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 385mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- LED backlight driver
- Low-side loadswitch
- Switching circuits
Key features
- Logic level compatible
- Very fast switching
- Trench MOSFET technology
- ElectroStatic Discharge (ESD) protection > 2 kV HBM
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL3N10#C51025829HUASHUO · SOT-223 | HUASHUO | SOT-223 | 40 | ₹13.45 · 40 in stock | View |
 | TPM1004NY3-1#C5122052TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 345 | ₹44.28 · 345 in stock | View |
 | NCE1502R#C502844NCE · SOT-223-3L | NCE | SOT-223-3L | 285 | ₹22.09 · 285 in stock | View |
 | FQT7N10LTF#C154506onsemi · SOT-223 | onsemi | SOT-223 | 111 | ₹87.33 · 111 in stock | View |
 | ME2612#C2841351MATSUKI · SOT-223 | MATSUKI | SOT-223 | 4 | ₹27.97 · 4 in stock | View |
