TECH PUBLICDatasheet (PDF)

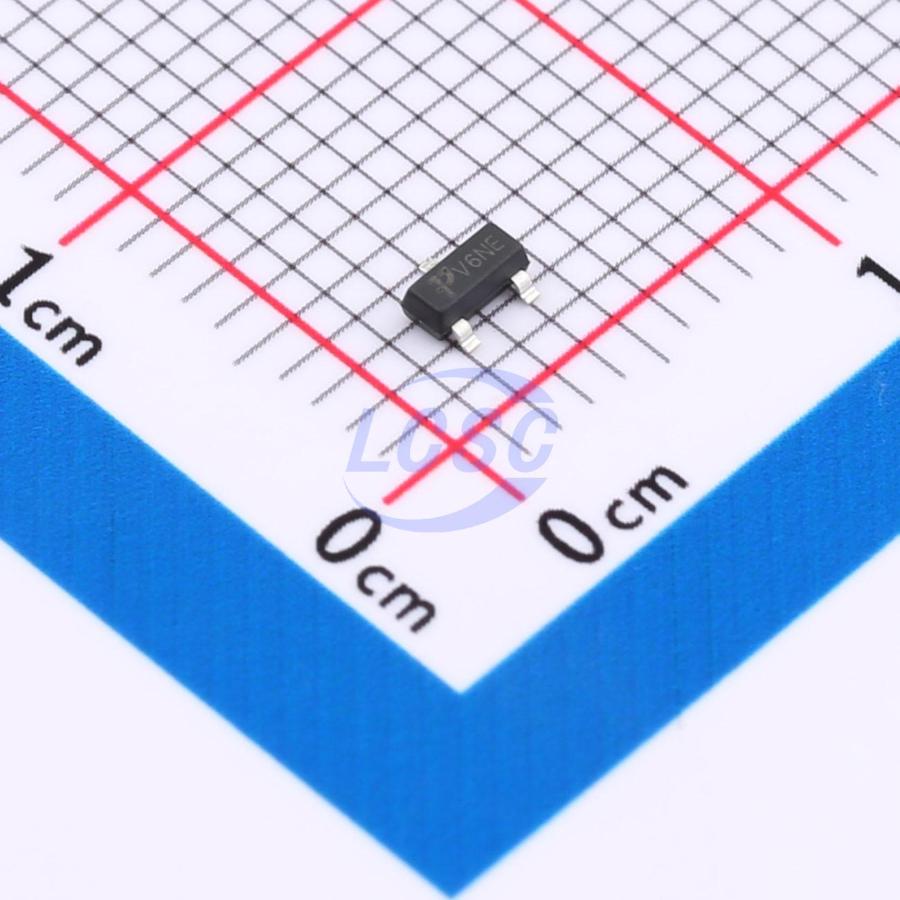

PMV16XNR
20V 6A 1.25W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PMV16XNR
- Store part #
- C28646372
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C28646372
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.11 | ₹101.10 |
| 100+ | ₹8.03 | ₹803.00 |
| 300+ | ₹7.00 | ₹2,100.00 |
| 3,000+ | ₹6.23 | ₹18,690.00 |
| 6,000+ | ₹5.61 | ₹33,660.00 |
| 9,000+ | ₹5.31 | ₹47,790.00 |
10 × ₹10.11
₹101.10
excl. GST
₹119.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV16XNR
₹101.10 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 574pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 2.1pF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 35mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.7nC
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Load/power switch
- Interface switch
- Battery management for ultra-compact portable devices
- Logic level translation
Key features
- VDS = 20V, ID = 6A
- RDS(ON) < 23mΩ at VGS = 2.5V
- RDS(ON) < 35mΩ at VGS = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLML2502TRPBF#C5123960TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 23,270 | ₹11.44 · 23,270 in stock | View |
 | WNM2016A#C5123961TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,650 | ₹8.03 · 5,650 in stock | View |
 | TPM20V6NLS3-2#C5123939TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,870 | ₹14.67 · 2,870 in stock | View |
 | AP2306GN#C5123962TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,900 | ₹10.05 · 2,900 in stock | View |
 | TPM20V6NLS3-1#C5123963TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,045 | ₹14.95 · 2,045 in stock | View |
