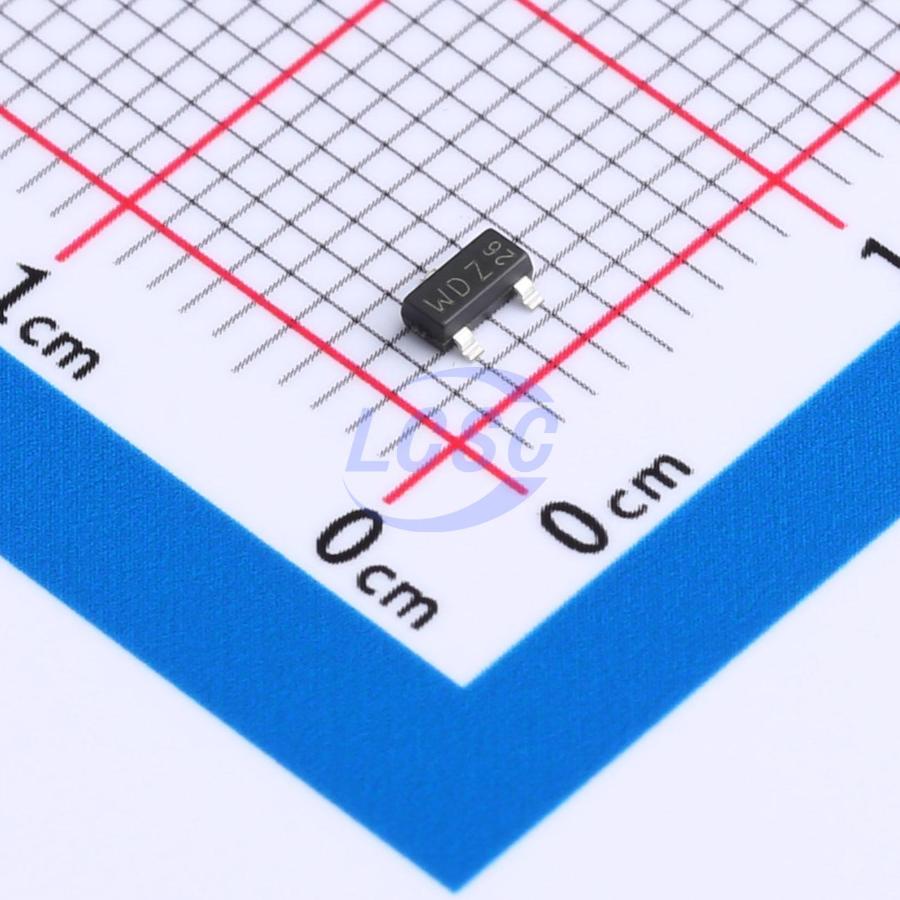

NexperiaDatasheet (PDF)
PMV48XPAR
P-Channel 20V 3.5A 930mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 3.5A SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PMV48XPAR
- Store part #
- C547258
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,242 in stock
#C547258
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.83 | ₹64.83 |
| 10+ | ₹51.12 | ₹511.20 |
| 30+ | ₹45.25 | ₹1,357.50 |
| 100+ | ₹37.85 | ₹3,785.00 |
| 500+ | ₹32.85 | ₹16,425.00 |
| 1,000+ | ₹30.89 | ₹30,890.00 |
1 × ₹64.83
₹64.83
excl. GST
₹76.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV48XPAR
₹64.83 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 930mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 55mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- High-side loadswitch
- High-speed line driver
- Relay driver
- Switching circuits
Key features
- Logic-level compatible Trench MOSFET technology
- Very fast switching
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3401LT1G#C81618LRC · SOT-23 | LRC | SOT-23 | 2,35,590 | ₹7.74 · 2,35,590 in stock | View |
 | WST3415A#C2906355Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 6,000 | ₹7.49 · 6,000 in stock | View |
 | PMV48XP#C2959854TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 41,430 | ₹8.86 · 41,430 in stock | View |
 | PMV48XP,215#C75560Nexperia · SOT-23 | Nexperia | SOT-23 | 5 | ₹26.04 · 5 in stock | View |
 | MEM2303M3G#C489699MICRONE · SOT-23 | MICRONE | SOT-23 | 1,490 | ₹7.12 · 1,490 in stock | View |
